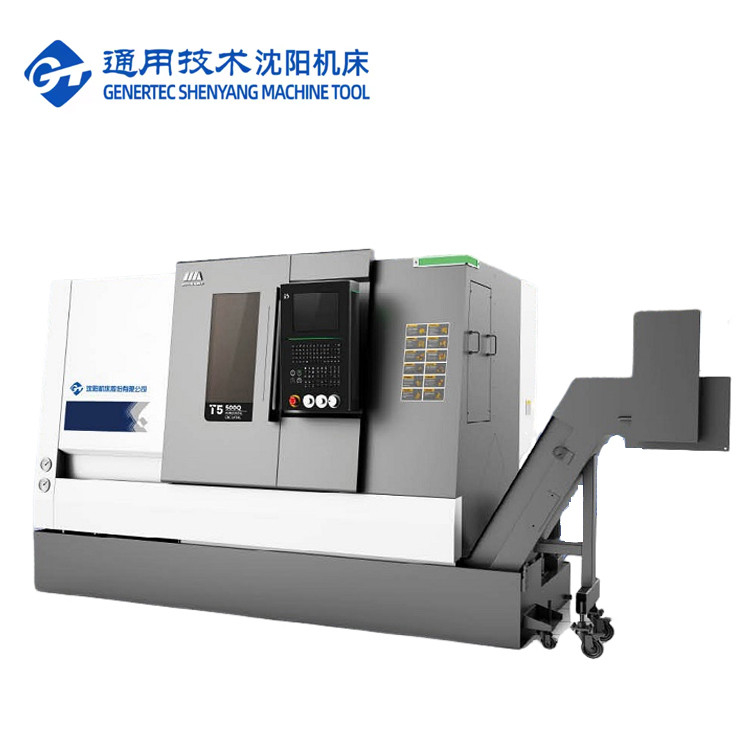

SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe

SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe

Swing Diameter 560mm CNC Lathe

SMTCL CNC Lathe Milling Machine Combo

Fanuc Slant Bed CNC Lathe

Place of Origin:

China

Brand Name:

SMTCL

Certification:

CE ISO

Model Number:

T5.2-500Q

Contact Us
Request A Quote
SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe
SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe
Product Details
Product Name:
Slant Bed Cnc Lathe Machine
Max. Swing Diameter (mm):
560 Mm
Max Cutting Dia:
350 Mm
Max. Length Of Workpiece (mm):
500 Mm
Max. Spindle Speed (r.p.m):
4500 R/min
Spindle Bore:
65 Mm
Tool Turret Type:
Horizontal 8 Positions Servo Turret

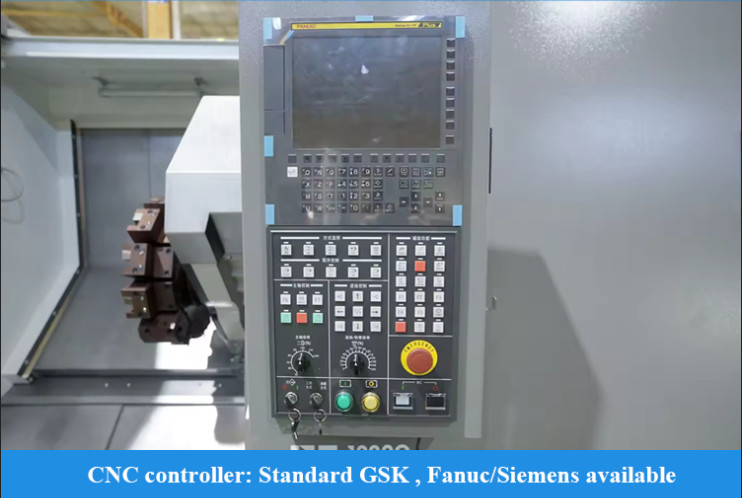

CNC Control System:
FANUC GSK Siemens Optional
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden package standard for sea shipping
Delivery Time
30 days
Supply Ability
50 Sets per Month
RELATED PRODUCTS
Good price SMTCL Hard Rail CNC Lathe HTC40S High Rigidity Large Span A2-8 Spindle Speed 4000r/min Slant Bed CNC Lathe online Video

SMTCL Hard Rail CNC Lathe HTC40S High Rigidity Large Span A2-8 Spindle Speed 4000r/min Slant Bed CNC Lathe

Get Best Price
Good price SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe online Video

SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe

Get Best Price
Good price SMTCL CNC Lathe Small Size Parts Processing T5.1-500Q Precision Metal CNC Slant Bed Lathe online Video

SMTCL CNC Lathe Small Size Parts Processing T5.1-500Q Precision Metal CNC Slant Bed Lathe

Get Best Price
Good price SMTCL CNC Lathe T5.2-1000Q Turning And Milling Combo Y Axis Type Turning Center Metal Slant Bed CNC Lathe online Video

SMTCL CNC Lathe T5.2-1000Q Turning And Milling Combo Y Axis Type Turning Center Metal Slant Bed CNC Lathe

Get Best Price
Contact Us
+8613916455787
sales@huidijd.com
86-021-61195255
Contact Now
Product Description

SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe 0

Product Description:

SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe

T5.2 - 500Q is a horizontal CNC lathe developed for the mid-to-high-end market. It adopts an integrated 45-degree inclined bed structure and has the characteristics of high precision, high efficiency, high rigidity, energy conservation and environmental protection. Its machining precision can reach IT6 level, and the surface roughness can reach Ra0.4.
Equipped with the intelligent CNC system, it can realize the high-precision integrated processing of multiple processes such as turning, milling, drilling and tapping, and is suitable for processing shaft and disc parts with strong stability.

Product Features:
1,High Precision

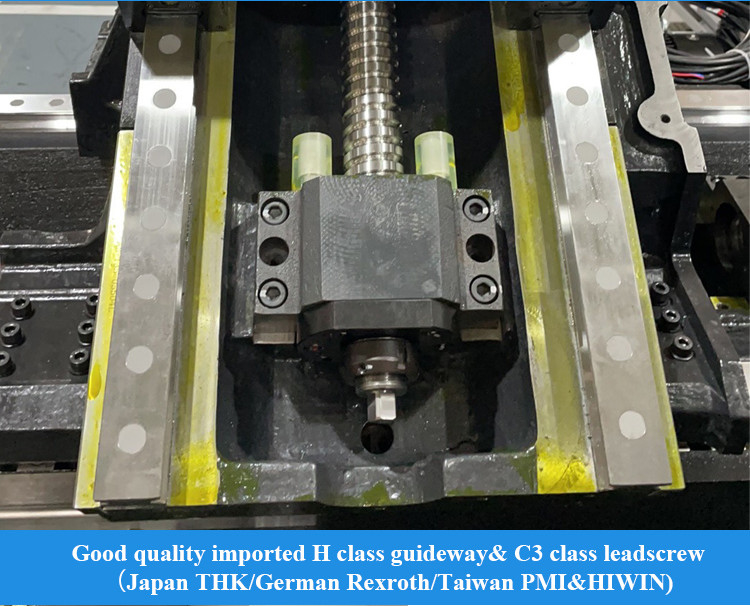

♦ C3 pre-drawn lead screw
♦ Error compensation technology
♦ Process standard quantification
2, High Efficiency
♦ Two axes high and fast moving speed

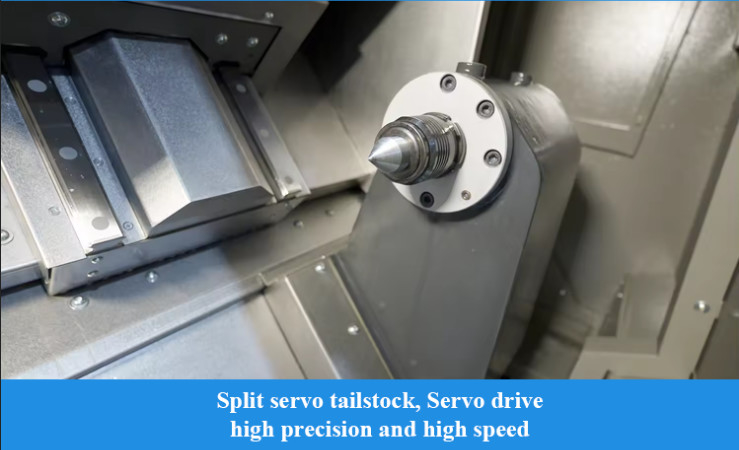

♦ Split servo tail
♦ High efficiency servo cutter tower
3,High Rigidity

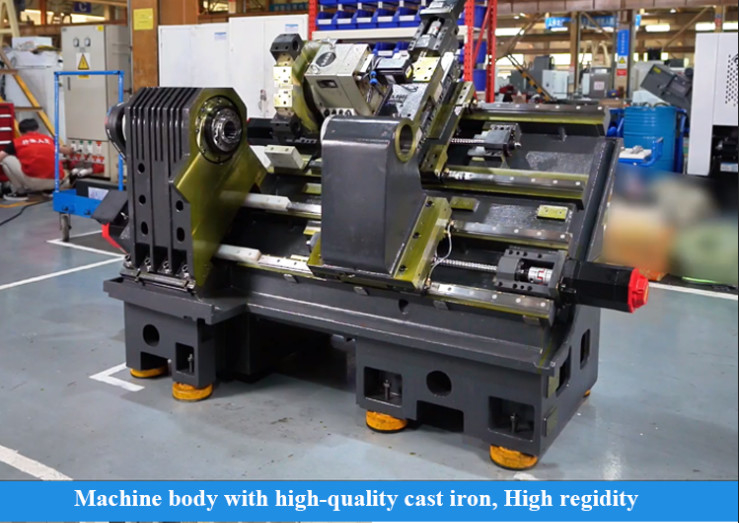

♦ High-quality cast iron bed and other key castings

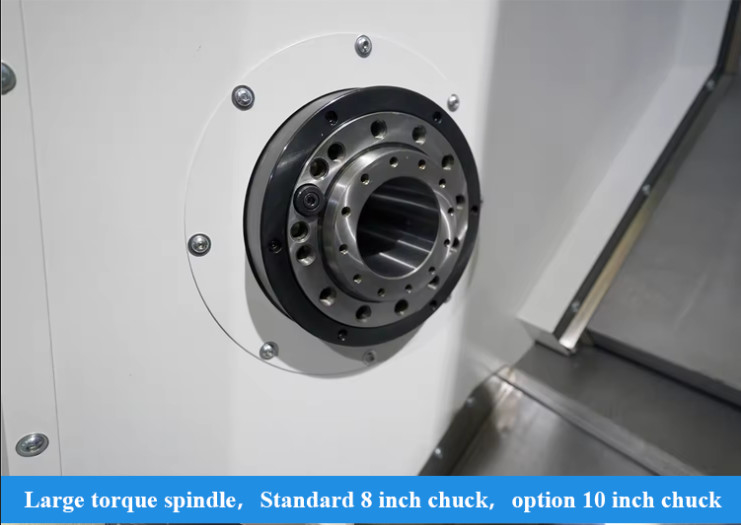

♦ Large span double row cylindrical roller spindle bearing
♦Anti-bending saddle structure
Product Details:
SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe 1

Product Paramenters:

Item
Unit
T5.2-500Q
T5.2-1000Q
Max. turning diameter
mm
Φ360
Φ360
Max. turning length
mm
500
1000
Max.swing diameter over bed
mm
Φ560
Φ560
Max.swing diameter over cross slide
mm
Φ350
Φ350
Spindle
Type of spindle nose

A2-6
A2-6
Inner diameter of front bearing
mm
100
100
Taper of spindle bore

1:20；Φ70
1:20；Φ70
Spindle bore
mm
Φ65
Φ65
Max. through bar diameter
mm
Φ50
Φ50
Standard chuck diameter
inch
8
8
Max. spindle speed
r/min
4500
4500
Spindle rated torque
Nm
136(769r/min)
136(769r/min)
Max. spindle torque
Nm
245(576r/min)
245(576r/min)
Main motor output power continuous /15 minutes
kW
11/15
11/15
Two axis
Rapid traverse of X/Z axis
m/min
30
30
X axis travel
mm
200
200
Z axis travel
mm
560
1050
Tailstock
Tailstock travel
mm
500(Servo drive)
950(Servo drive)
Tailstock quill taper
Morse
MT-5
MT-5
Turret
Turret form

Horizontal 8 positions servo turret
Horizontal 8 positions servo turret
Center height of turret
mm
80
80
Turret rotation repeat positioning accuracy
Sec.
±1.6
±1.6
Whether the cutter can be selected nearby

yes
yes
Other
Distance from spindle center to bed bottom
mm
1015
1015
Machine net weight
kg
4200
4750
Total power supply capacity
kVA
27
27
Overall dimensions (Length X width X height)
mm
2750×1890×1900
3620×1890×1900

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL CNC Lathe Milling Machine Combo T5.2-500Q Swing Diameter 560mm Fanuc Slant Bed CNC Lathe 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
