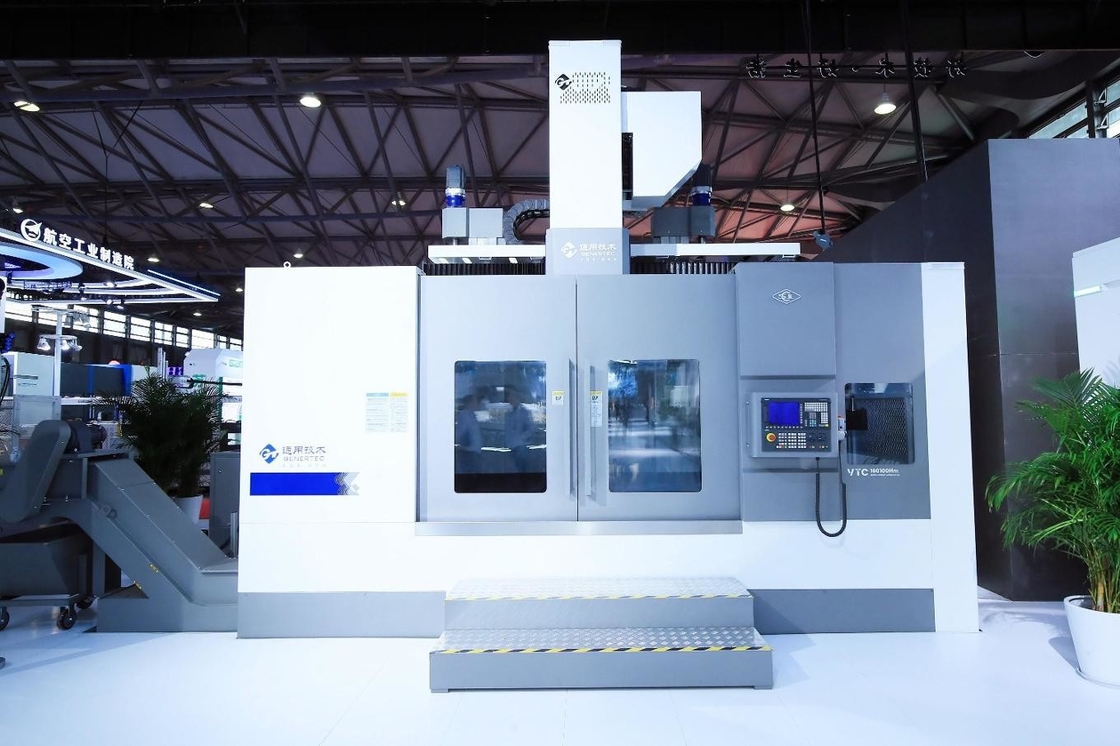

Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo

Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo

Heavy CNC Vertical Lathe

CNC Vertical Lathe Milling Combo

Max.Swing Diameter 2500mm

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

VTC 200140H

Contact Us
Request A Quote
Product Details
Brand Name:
SMTCL
Model Number:
VTC 200140H
Key Word:
Heavy CNC Vertical Lathe
Diameter Of Workbench:
Φ2000
Max.swing Diameter:
Φ2500
Max.cutting Diameter:
Φ2300
Max. Workpiece Height:
1600
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
Product Description

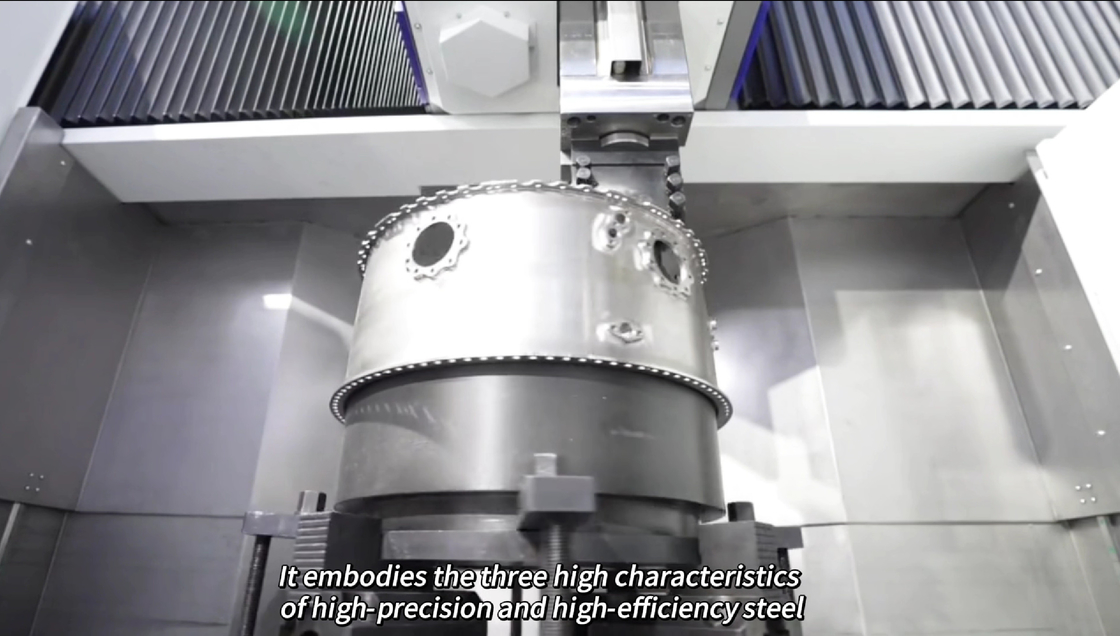

Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo 0

Product Description:

Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo
The Shenyang Machine Tool VTC200140H has many outstanding selling points. Its body is solid, ensuring stable and reliable processing. The advanced numerical control system is easy to operate and has extremely high precision. The larger processing stroke is suitable for various workpieces. The high-speed spindle brings strong cutting ability and can efficiently complete turning and milling compound processing. It is widely used in fields such as machinery manufacturing and aerospace. This equipment can improve production efficiency and ensure product quality for enterprises and reduce processing costs. At the same time, the brand reputation and high-quality after-sales service of Shenyang Machine Tool also add a lot of luster to it. It is a reliable high-end machining center.

Product Features:

1,high rigidity

◆ High rigid casting structure

◆ High rigid ram structure

◆ High rigid hard rail structure

◆ High rigid host structure

2,High precision and high efficiency

◆ Spindle high-precision transmission mechanism

◆ Double spindle indexing mechanism

◆ Automatic tool change system

3,High stability

◆ Symmetrical layout

◆ Beam double drive lifting structure

◆ Cross roller bearing

4,The machine structure advantage

◆ Modular turning and milling

◆ Layout advantage

◆ Control advantage

Product Details:

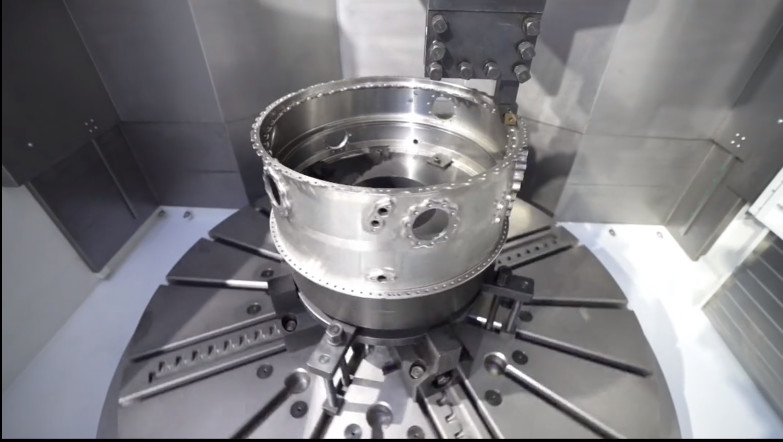

Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo 1

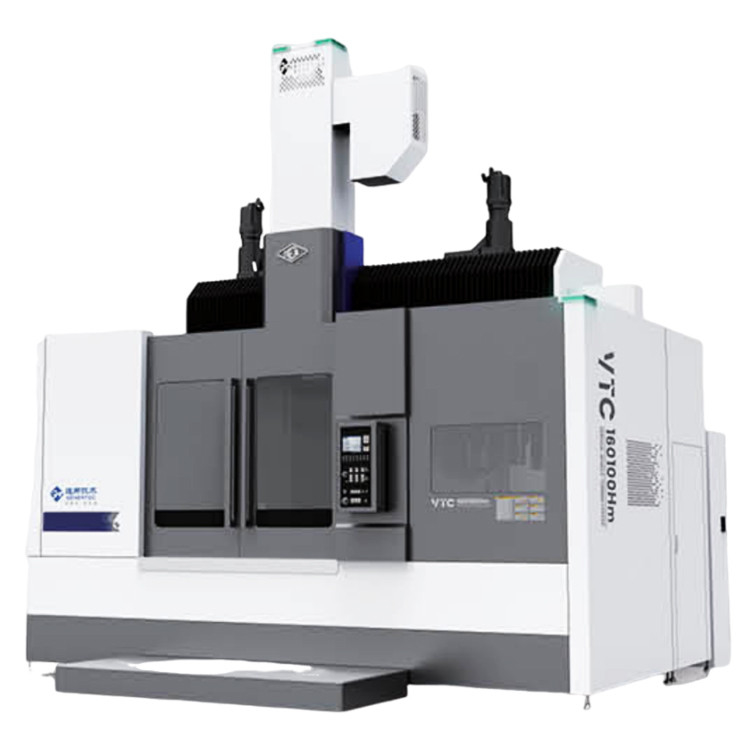

High rigidity casting structure

VTC series castings are made of box cast iron structure integrated molding, after heat treatment to release internal stress, design thick reinforcement, low center of gravity, good shock absorption, important joint surface are special scraping treatment, to ensure that in heavy cutting can still adhere to the accuracy and stability of the machine tool.

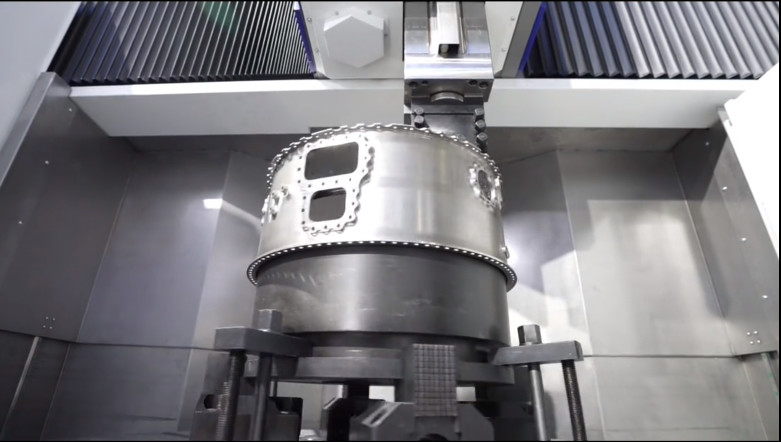

Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo 2

High rigidity ram structure

The ram is forged steel structure, the surface is quenched, the cutter clamp is tensioned by T-key, the lower end is positioned by tooth disk, and the track joint surface is scraped, with high positioning accuracy. At the same time, the cross section of the ram body is increased by 44% compared with the previous generation.
Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo 3

High rigid hard rail structure

The two axes adopt high rigidity hard rail structure, the track surface is professionally treated, and attached with low friction coefficient wear plate, strong rigidity, good accuracy retention, with excellent cutting ability, more suitable for heavy duty cutting.
Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo 4

High rigid host structure

The main structure is mainly designed for the high rigidity and heavy load processing requirements. The thickness of the column and the span of the guide rail are increased to strengthen the rigidity of the support. The lower lever of the ram can effectively resist the cutting torque and improve the machining stability.
Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo 5


Turning and milling modularization
With integrated turn-milling configuration, the skateboard structure is compatible with the turning ram structure and the turning ram structure, easy to replace and strong modularity.
Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo 6

Layout advantage

Modular structure design, can choose single ram and double ram, increase the processing efficiency.
Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo 7


Spindle high precision transmission mechanism
The main drive is upgraded from belt drive to gear transmission, which can provide accurate segmentation and positioning accuracy, with turn-milling composite function, high stability, and the internal design of the spindle constant temperature cooling device to prevent the axial movement caused by excessive temperature change.
Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo 8


Double spindle indexing mechanism
The table main drive uses two main motors to drive the table rotation. Through the CNC system to achieve synchronous control of the two main motors, so that the indexing movement of the machining more stable and accurate, to achieve the turning speed control function and C-axis anti-backlash function, to achieve a high level of quality surface quality.
Heavy CNC Vertical Lathe VTC200140H Max.Swing Diameter 2500mm CNC Vertical Lathe Milling Combo 9

Automatic tool change system

Hanging disk tool store, according to the user's processing needs, to achieve fast automatic tool change, shorten the processing auxiliary time, improve production efficiency. A variety of turning tool clips are available through T-head and clamping.

Product Paramenters:

ltems
UNIT
VTC 200140H
Diameter of workbench
mm
Φ2000
Max.swing diameter
mm
Φ2500
Max.cutting diameter
mm
Φ2300
Maximum workpiece height
mm
1600
Maximum torque of workbench
N.m
49800
Maximum speed of workbench
r/min
150
Rated power of main motor
kw
58
Ram


Size of ram body section
mm×mm
240×240
Beam


Beam lift movement
mm
1400
X/Z axes


X-axis travel
mm
-50-+1540
Z-axis travel
mm
1400
X-axis rapid traverse speed
m/min
10
Z-axis rapid traverse speed
m/min
8
Tool holder


Turning tool rod dimensions
mm
40×40
Positioning accuracy


X axis
mm/1000mm
0.025
Z axis
mm/1000mm
0.025
Repeated positioning accuracy


X axis
mm
0.01
Z axis
mm
0.01
Machine weight
kg
45000
Standard configuration
Selective configuration
Siemens 828D system
Fanuc System
Lubrication equipment
Raised column
Chip box
Oil mist collector
Hydraulic equipment
Tool detection
Manual four jaw chuck
Grating scale
Safety plate
Job detection
Side flushing chip
High pressure water tank
Tricolour light
Pneumatic door
Water gun floodlight
Chip cleaner
Cross roller bearing
Oil-water separation
Door lock
Magnetic chuck
Oil cooler
Tool magazine
Semi-enclosed protection
Full defense
