Place of Origin:
CHINA
Brand Name:
HD
Certification:
CE ISO certification
Model Number:
HDHJ5068
Video
Video

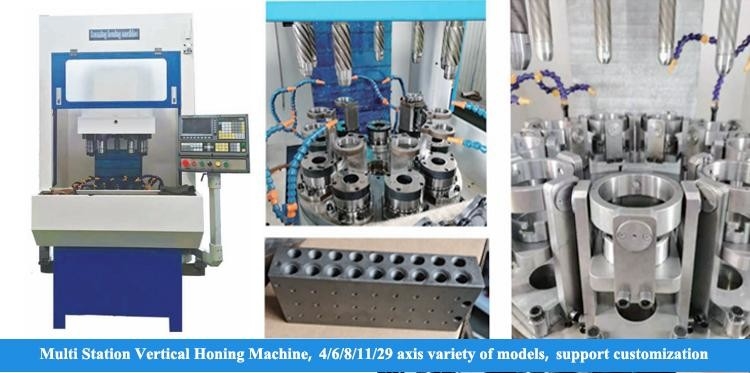

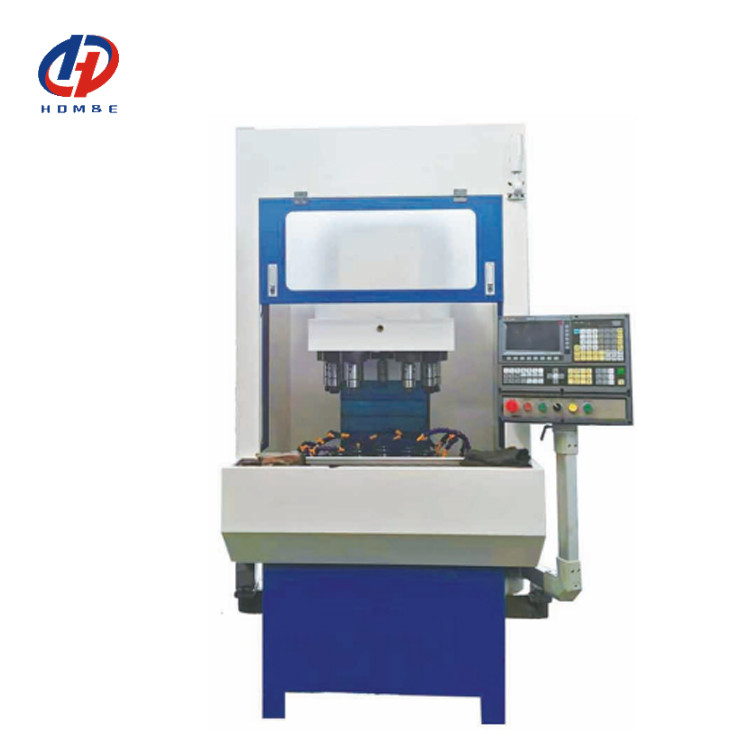

Product Description:
Honing and Reaming Machine is a kind of used for finishing machinery and equipment on the surface of the metal inner hole. It is mainly used for precision work internal hole, in order to obtain higher surface finish and dimensional accuracy.
Product Features:
|
Main technical specifications
|
Unit
|
HDHJ5068
|
|
Machine features
|
|
6-axis 8-station
|
|
Number of spindle
|
Pcs
|
6
|
|
Number of worktable transposition
|
Pcs
|
8
|
|
Worktable positioning method
|
|
splitter
|
|
Worktable drive power
|
kw
|
0.37
|
|

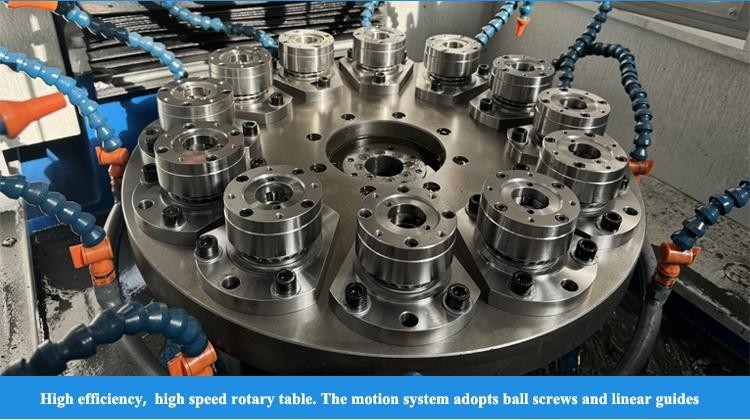

Worktable diameter
|
mm
|
690
|
|
Worktable rotation time for one station
|
s
|
1.1
|
|
Distance from spindle end face to table surface
|
mm
|
760
|
|
Main body weight
|
T
|
2.6
|
|
Dimension of mainframe(L*W*H)
|
mm
|
1725×1260×2600
|
|
Max. honing diameter
|
mm
|
50(60 optional)
|
|
Max. honing depth
|
mm
|
200
|
|
Spindle drive type
|
|
servo motor
|
|
Max. spindle speed
|
r/min
|
600
|
|
Spindle reciprocating drive power
|
kw
|
3.1
|
|
Max. spindle travel
|
mm
|
620
|
|
Max. spindle reciprocating speed
|
m/min
|
20
|
|
Control system
|
|
Nanjing CNC/Siemens PLC
|

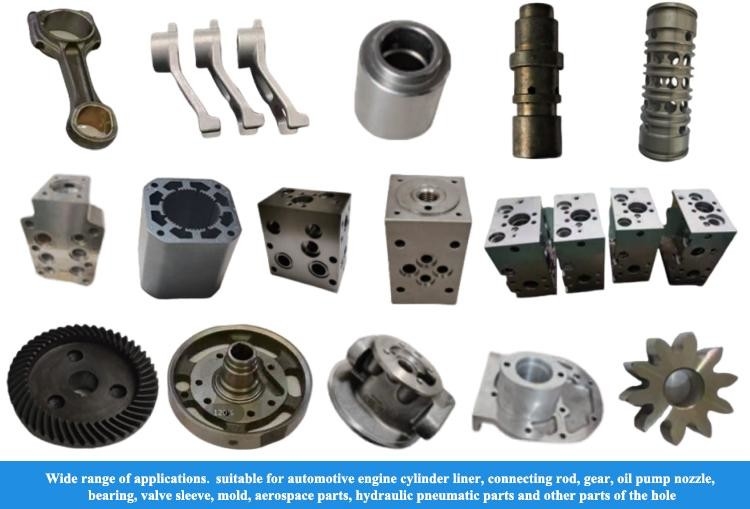

Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
