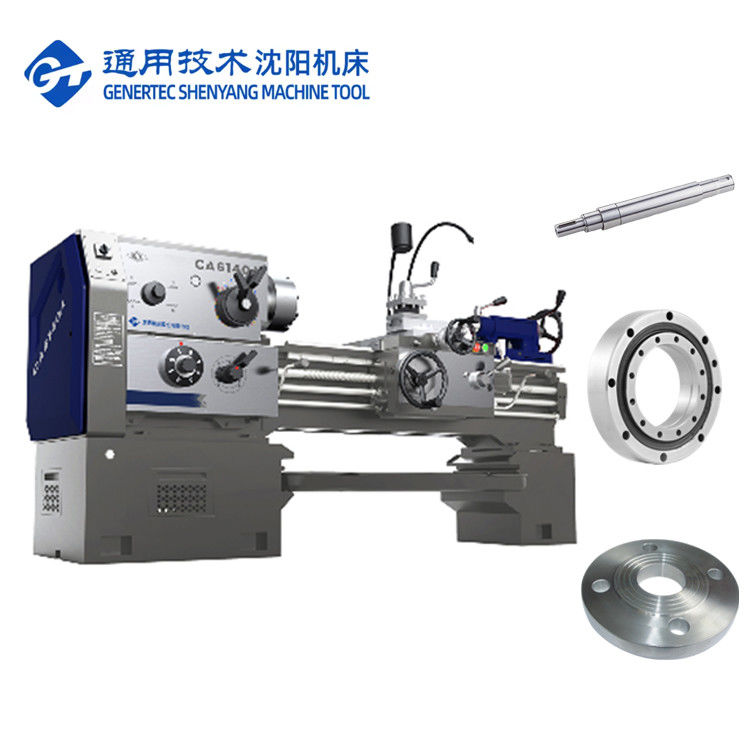

SMTCL Conventional Turnings Lathes CA6140A 2000mm Flange Lathe Horizontal Manual Lathe Machine

Product Description:

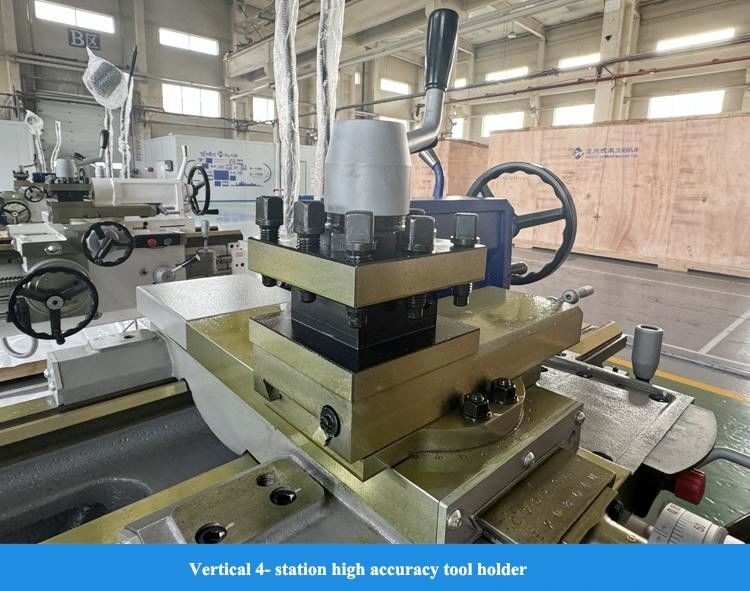

CA6140 is a classic machine tool. It adopts a horizontal layout with a rigid bed, which can effectively reduce machining vibrations. Its spindle has a wide range of variable speeds, enabling it to meet diverse cutting requirements, and the speed adjustment is flexible and precise. It is easy to operate. The carriage it is equipped with can be manipulated smoothly, and the tool post can change tools quickly. It is suitable for the turning processing of shaft and disc parts. Whether it is for single-piece and small-batch production or mass processing, it has long been renowned in the field of mechanical processing due to its stable performance and relatively high precision.

Product Features:

1,Novel appearance

The appearance design of the machine tool integrates the ergonomic concept into the mature machine structure, enhances the operation, uses the striking red and gray stamping parts, and the overall appearance is beautiful.

2,Complete specifications

CA series products have complete specifications and a wide range of categories. Including straight bed lathe, saddle bed lathe and large bore lathe.

3,Complete functions

CA series lathe can bear a variety of materials end, inside and outside E1 column, cone and other rotating surface turning processing. More accurate processing of a variety of metric, imperial, modular, diameter pitch threads. In addition, drilling, hairpin holes, pulling oil guns and other work can also be easily qualified.

4,Excellent performance

The 40A series ordinary lathe is equipped with a large diameter spindle front bearing and has a wider bed span than similar products, achieving a higher structural difference and achieving new levels of performance.

Product Paramenters:

Item		Unit	CA6140A/ CA6240A	CA6150A/CA6250A
Max.swing dia over bed		mm	400	500
Max.swing dia over carriage		mm	210	300
Max swing dia over gap/ Width of gap		mm	630*210	720*210
Max workpiece length		mm	750/650;1000/900;1500/1400;2000/1900

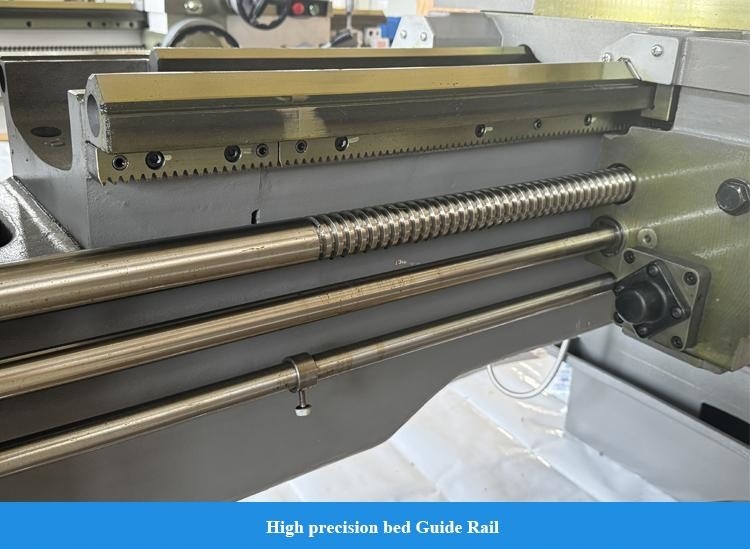

Width of bed / hardness mm		mm	400, Rc52
Section of turning tools		mm	25x25

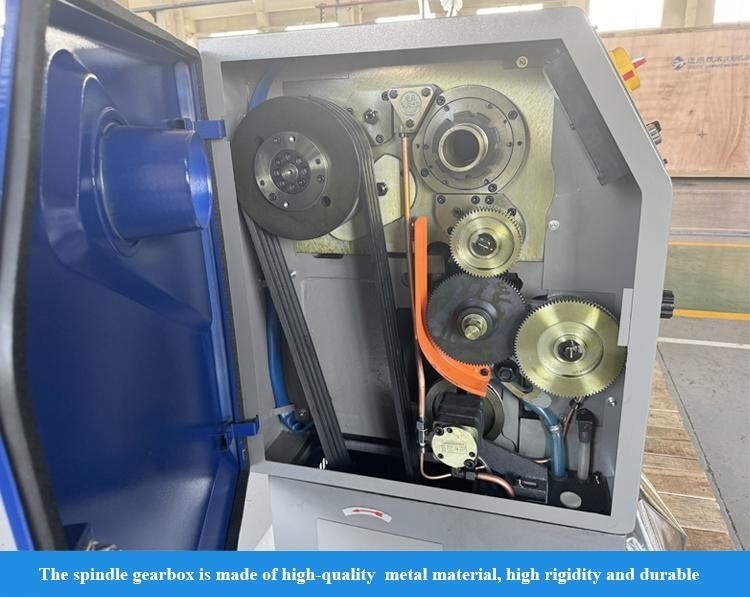

Spindle speed range		r/min	11-1600(24)

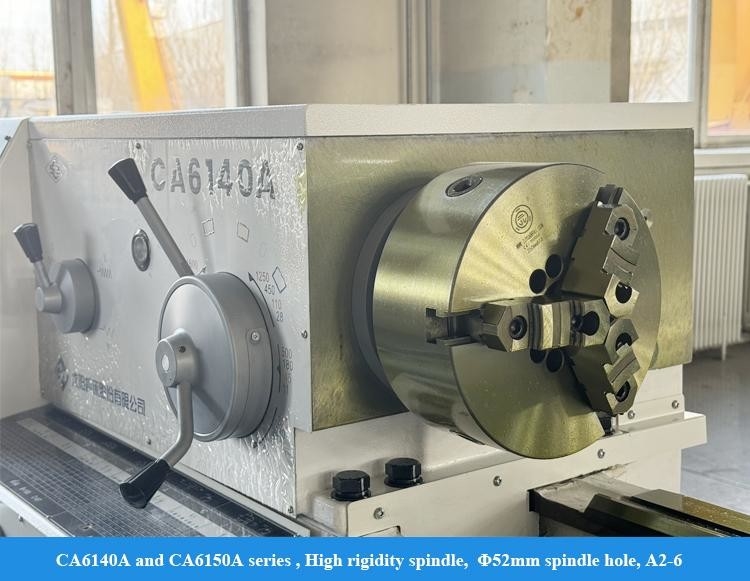

Spindle bore and nose		mm	52 A6
Taper of spindle nose			Morse 6#
Range of longitudinal feed	Standard	mm/r	0.08-1.59	0.08-1.59
	small feed	mm/r	0.028-0.054	0.028-0.054
	enlarge feed	mm/r	1.71-6.33	1.71-6.33
Rang of cross feed	Standard	mm/r	0.04-0.79	0.04-0.79
	small feed	mm/r	0.014-0.027	0.014-0.027
	enlarge feed	mm/r	0.86-3.16	0.86-3.16
Travel of cross slide / top turret travel		mm	320/140
Swiveling angle of compound slide		degree	±90
Rapid travel carriage		m/min	4
Rapid travel of cross slide		m/min	2

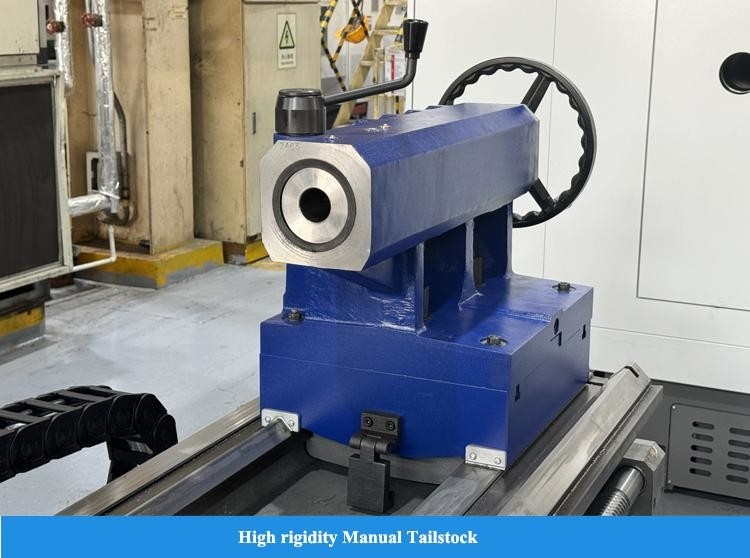

Travel of tailstock spindle		mm	150
Diameter of tailstock spindle		mm	75
Taper of tailstock spindle			Morse 5#
Metric thread(kinds)		mm	1-192(44)
Whitwhorth thread(kinds)		t.p.i	2-24(21)
Modular thread(kind)		mm	0.25-48(39)
Diameter Pitch(kinds)		D.P	1-96(37)
Main motor		kW	7.5
New weight of machine	750mm	kg	1990
	1000mm	kg	2070	2140
	1500mm	kg	2220	2290
	2000mm	kg	2570	2640
Overall dimensions(L*W*H)	750mm	mm	2418*1000*1267
	1000mm	mm	2668*1000*1267	2668*1037*1312
	1500mm	mm	3168*1000*1267	3168*1037*1312
	2000mm	mm	3668*1000*1267	3668*1037*1312

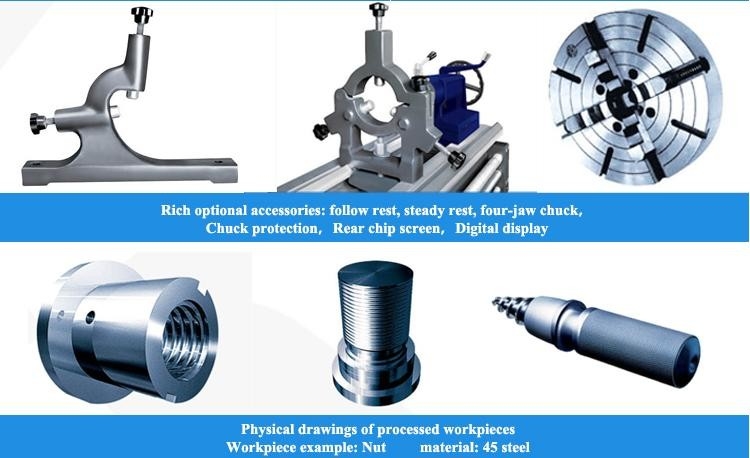

CA6140A and CA6240A Standard configuration: Spindle bore dia. :Φ 52mm 1. Spindle nose type:A6 2. Chuck : Φ 250mm three jaw chuck 3. Taistock tape: Morse 5 4. Dead center 5. Working lamp 6. Oil gun 7. Tool box 8. Adjustable iron pad	CA6140A and CA6240A Selective configuration: 1. Φ 315mm manual three jaw chuck 2. Φ 250mm manual four chuck 3. Φ 315mm manual four jaw chuck 4. Steady rest Φ 20- Φ125mm 5. Steady rest Φ100-Φ205mm 6. Follow rest Φ20-Φ80mm 7. Live center Morse 5 or Morse 4 8. Chuck protection 9. Rear chip screen 10. Digital display
CA6150A and CA6250A Standard configuration: Spindle bore dia. :Φ 52mm 1. Spindle nose type:A6 2. Chuck : Φ 250mm three jaw chuck 3. Taistock tape: Morse 5 4. Dead center 5. Working lamp 6. Oil gun 7. Tool box 8. Adjustable iron pad	CA6150A and CA6250A Selective configuration: 1. Φ 315mm manual three jaw chuck 2. Φ 400mm manual four jaw chuck 3. Φ 250mm manual four chuck 4. Φ 315mm manual four jaw chuck 5. Φ 400mm manual four jaw chuck 6. Steady rest Φ 20- Φ125mm 7. Steady rest Φ125-Φ250mm 8. Follow rest Φ20-Φ80mm 9. Live center Morse 5 or Morse 4 10. Chuck protection 11. Rear chip screen 12. Digital display
