Product Description:

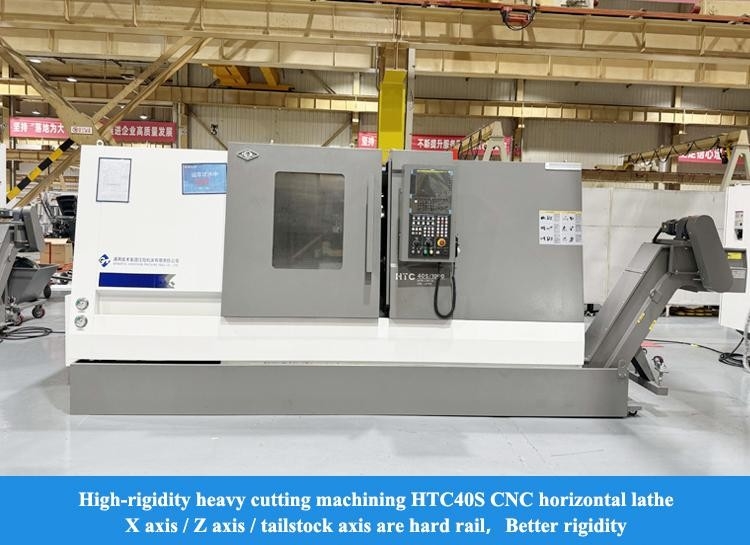

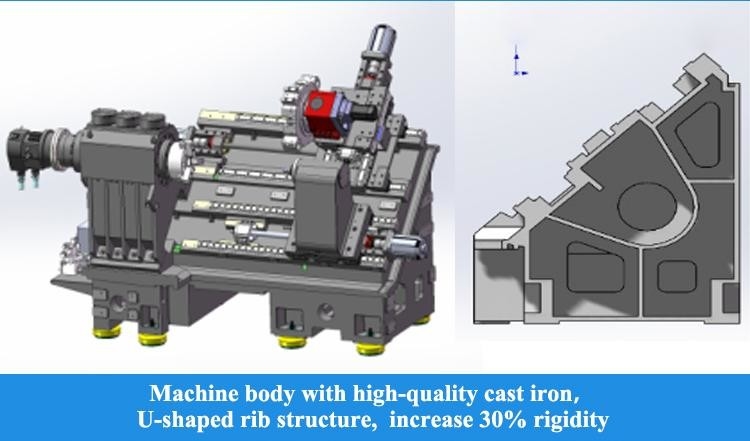

Product Features:

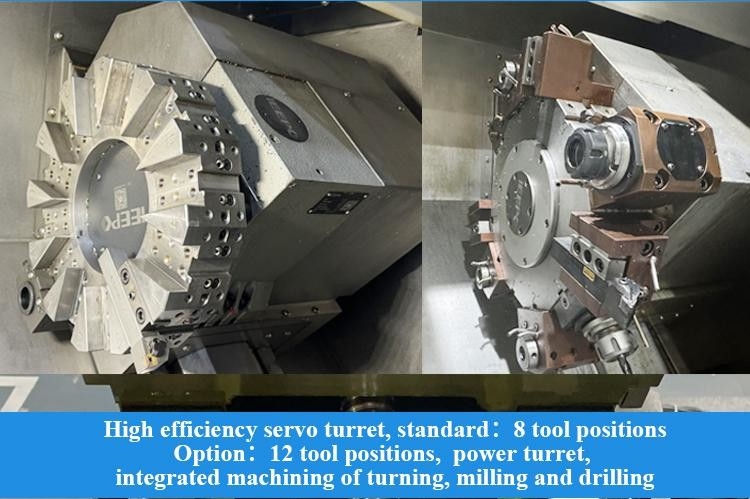

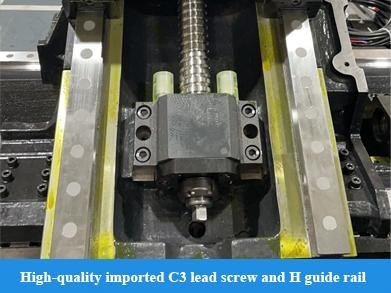

◆ High-efficiency servo power tool holder

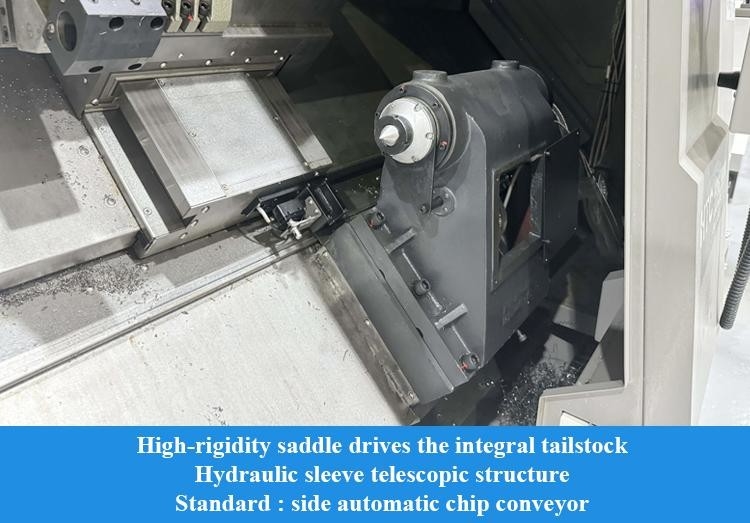

◆ Split servo tailstock
◆ High rapid movement speed of two axes
◆ Optional Y-axis configuration to achieve multi
sequence integrated processing
Product Details:
|
Project
|
Unit
|
HTC 40Sm/500
|
|
Max. cutting dia.
|
mm
|
Φ350
|
|
Max.cutting length
|
mm
|
450
|
|
Max. swiming dia.over bed
|
mm
|
Φ560
|
|
Max. swiming dia.on slide
|
mm
|
Φ400
|
|

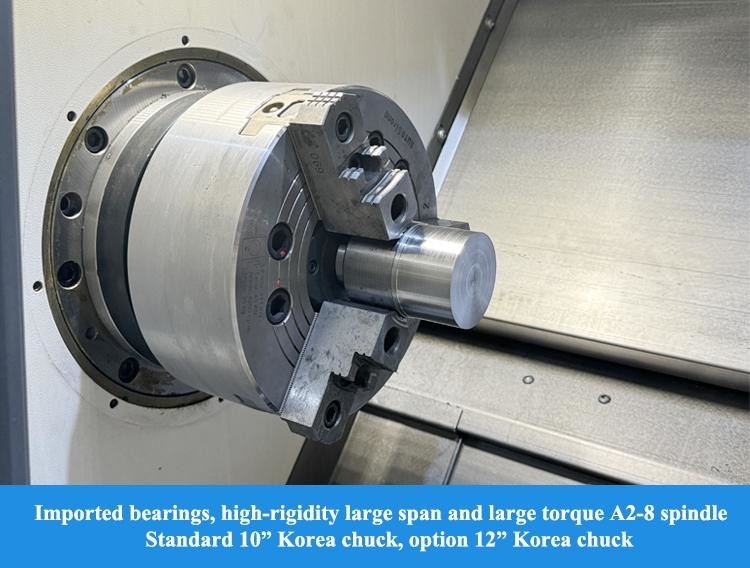

Spindle
|
|
|
|
Spindle nose model
|
|
A2-8
|
|
Front bearing inner dia.
|
mm
|
120
|
|
Spindle taper and hole size
|
|
1:20;Φ70
|
|
Dia. of spindle hole
|
|
Φ80
|
|
Max.bar dia.
|
mm
|
Φ65
|
|
Standard chuck dia.
|
inch
|
10
|
|
Spindle speed range
|
r/min
|
4000
|
|
Rated spindle torque
|
N·m
|
170(800r/min)
|
|
Spindle Max. torque
|
N·m
|
280(600r/min)
|
|
Main motor output power continuous/15 min.
|
kW
|
15/18.5
|
|
X/Z axis
|
|
|
|
X/Z axis rapid movement
|
m/min
|
20
|
|
X axis travel
|
mm
|
220
|
|
Z axis travel
|
mm
|
510
|
|
Tailstock
|
|
|
|
Tailstock travel
|
mm
|
350
|
|
Tailstock drive method
|
|
Saddle drag
|
| Tailstock sleeve travel | mm | 100 |
| Tailstock sleeve dia. | mm | Φ100 |
| Tailstock taper hole taper | Morse | MT-4 |
|
Turret
|
|
|
|
Turret typle
|
|
Horizontal 12-station power turret
|
|
Center height
|
mm
|
100
|
|
Turret indexing repeat positioning accuracy
|
Sec.
|
±1.6
|
|
Tool size
|
mm
|
25
|
|
If could choose tool nearby
|
|
yes
|
|
Power tool holder interface
|
|
BMT55
|
|
Max. drilling capacity
|
mm
|
16×0.2
|
|
Max. milling capacity
|
mm
|
14×10×40
|
|
Max. tapping capacity
|
mm
|
M12×1.5
|
|
Others
|
|
|
|
Distance between spindle center and floor
|
mm
|
1050
|
|
Machine tool net weight
|
kg
|
4300
|
|
Overall dimensions(LxWxH)
|
mm
|
2870×1920×2000
|
|
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the actual product.
|
||
