SMTCL 2000mm Manual Gap Bed Lathe CA6150B/A Manual Metal Turning Lathe Machine

Product Description:

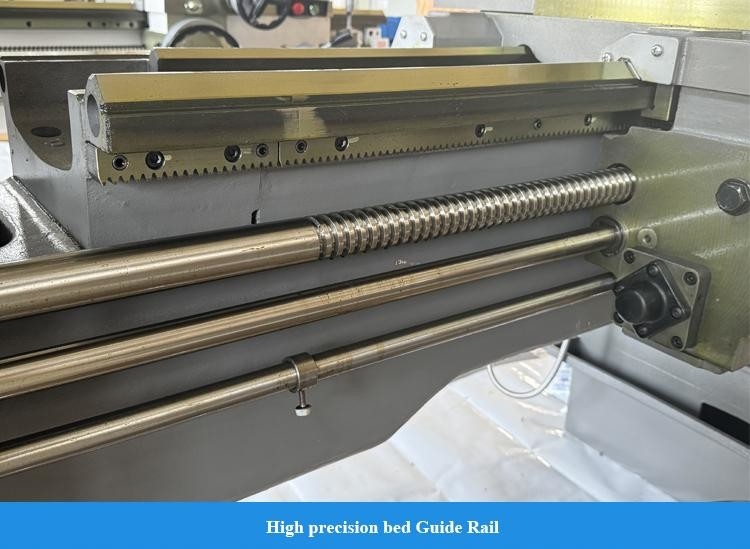

CA Series ordinary lathe This lathe is suitable for turning internal and external cylindrical surface, conical surface and other rotating surface, turning all kinds of metric, imperial, modular and diameter pitch threads, and can drill and pull oil groove and other work. CA series products, based on the "A" model, derive several deformation products. The bed is wider than the general lathe, with high stiffness, the guide rail surface is quenched, durable and wear-resistant.

Product Features:

1,Novel appearance

The appearance design of the machine tool integrates the ergonomic concept into the mature machine structure, enhances the operation, uses the striking red and gray stamping parts, and the overall appearance is beautiful.

2,Complete specifications

CA series products have complete specifications and a wide range of categories. Including straight bed lathe, saddle bed lathe and large bore lathe.

3,Complete functions

CA series lathe can bear a variety of materials end, inside and outside E1 column, cone and other rotating surface turning processing. More accurate processing of a variety of metric, imperial, modular, diameter pitch threads. In addition, drilling, hairpin holes, pulling oil guns and other work can also be easily qualified.

4,Excellent performance

The 40A series ordinary lathe is equipped with a large diameter spindle front bearing and has a wider bed span than similar products, achieving a higher structural difference and achieving new levels of performance.

Product Details:

Product Paramenters:

Item		Unit	CA6140B/A CA6240B/A	CA6150B/A CA6250B/A
Max.swing dia over bed		mm	400	500
Max.swing dia over carriage		mm	210	300
Max swing dia over gap/ Width of gap		mm	630*210	720*210
Max workpiece length		mm	1000/900; 1500/1400; 2000/1900
Width of bed / hardness mm		mm	400, Rc52

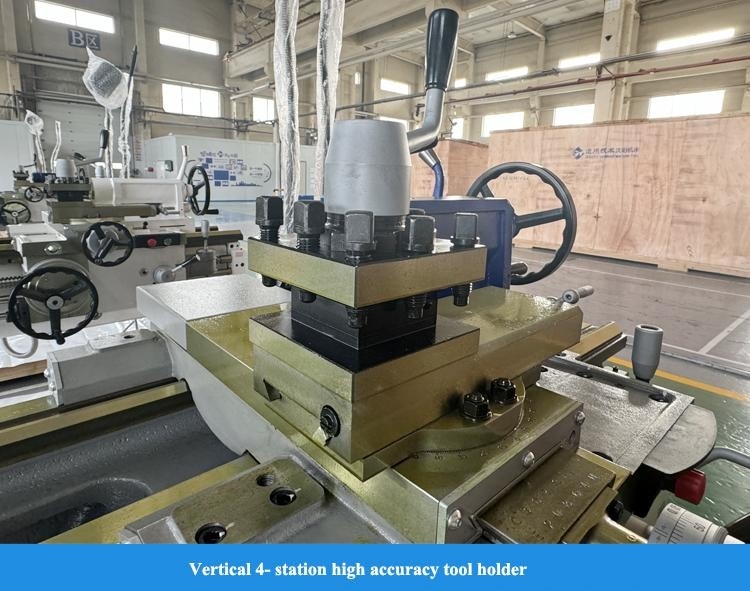

Section of turning tools		mm	25x25
Spindle speed range		r/min	10-1400(24)

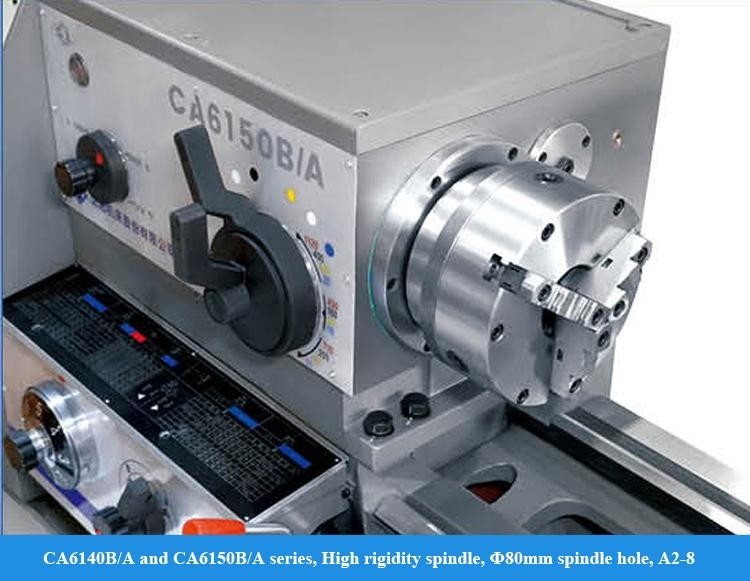

Spindle bore and nose		mm	80 A28
Taper of spindle nose			Φ90mm(1:20)
Range of longitudinal feed	Standard	mm/r	0.11-1.6
	small feed	mm/r	0.028-0.11
	enlarge feed	mm/r	1.71-6.4
Rang of cross feed	Standard	mm/r	0.05-0.8
	small feed	mm/r	0.014-0.005
	enlarge feed	mm/r	0.88-3.2
Travel of cross slide / top turret travel		mm	320/140
Swiveling angle of compound slide		degree	±90
Rapid travel carriage		m/min	4
Rapid travel of cross slide		m/min	2

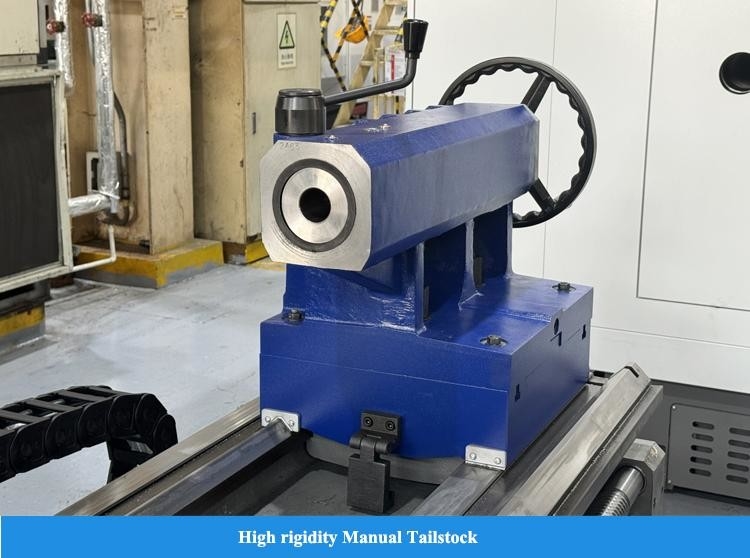

Travel of tailstock spindle		mm	150
Diameter of tailstock spindle		mm	Φ75
Taper of tailstock spindle			Morse 5#
Metric thread(kinds)		mm	1-192(44)
Whitwhorth thread(kinds)		t.p.i	1/2-24(28)
Modular thread(kind)		mm	0.25-48(39)
Diameter Pitch(kinds)		D.P	1/2-96(38)
Main motor		kW	7.5
New weight of machine	1000mm	kg	2070	2140
	1500mm	kg	2220	2290
	2000mm	kg	2570	2640
Overall dimensions(L*W*H)	1000mm	mm	2668*1000*1270	2668*1037*1315
	1500mm	mm	3168*1000*1270	3168*1037*1315
	2000mm	mm	3668*1000*1270	3668*1037*1315

CA6140B/A and CA6240B/A Standard configuration: Spindle bore dia. :Φ 80mm 1. Spindle nose type:A28 2. Chuck : Φ 250mm three jaw chuck 3. Taistock tape: Morse 5 4. Dead center 5. Working lamp 6. Oil gun 7. Tool box 8. Adjustable iron pad	CA6140B/A and CA6240B/A Selective configuration: 1. Φ 315mm manual three jaw chuck 2. Φ 250mm manual four chuck 3. Φ 315mm manual four jaw chuck 4. Steady rest Φ 20- Φ125mm 5. Steady rest Φ100-Φ205mm 6. Follow rest Φ20-Φ80mm 7. Live center Morse 5 or Morse 4 8. Chuck protection 9. Rear chip screen 10. Digital display

CA6150B/A and CA6250B/A Standard configuration: Spindle bore dia. :Φ 80mm 1. Spindle nose type:A28 2. Chuck : Φ 250mm three jaw chuck 3. Taistock tape: Morse 5 4. Dead center 5. Working lamp 6. Oil gun 7. Tool box 8. Adjustable iron pad

CA6150B/A and CA6250B/A Selective configuration: 1. Φ 315mm manual three jaw chuck 2. Φ 400mm manual three jaw chuck 3. Φ 250mm manual four chuck 4. Φ 315mm manual four jaw chuck 5. Φ 400mm manual four jaw chuck 6. Steady rest Φ 20- Φ125mm 7. Steady rest Φ125-Φ250mm 8. Follow rest Φ20-Φ80mm 9. Live center Morse 5 or Morse 4 10. Chuck protection 11. Rear chip screen 12. Digital display
