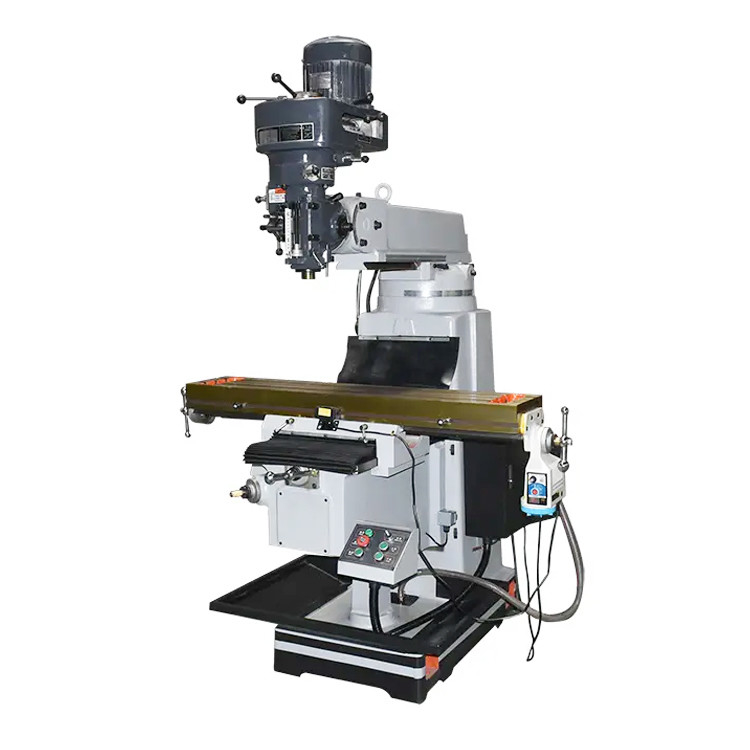

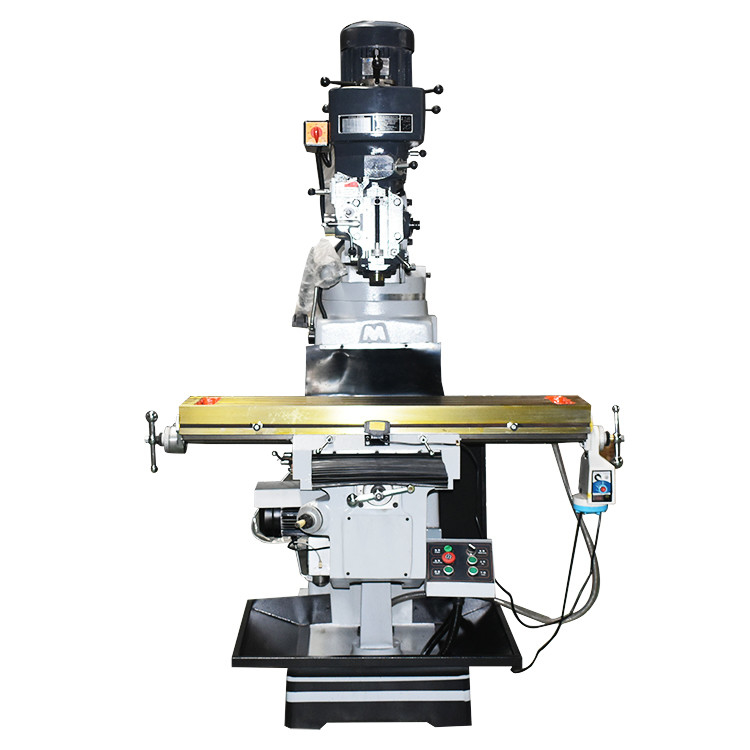

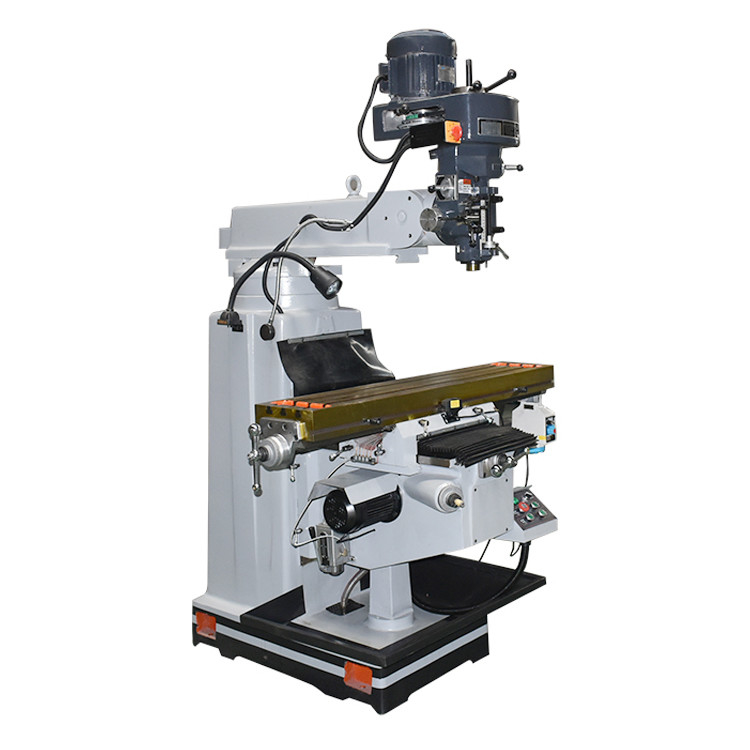

Metal Vertical 3 Axis Turret Milling Machine 4H Manual Milling Machine Fresadora

Product Description:

Product Features:

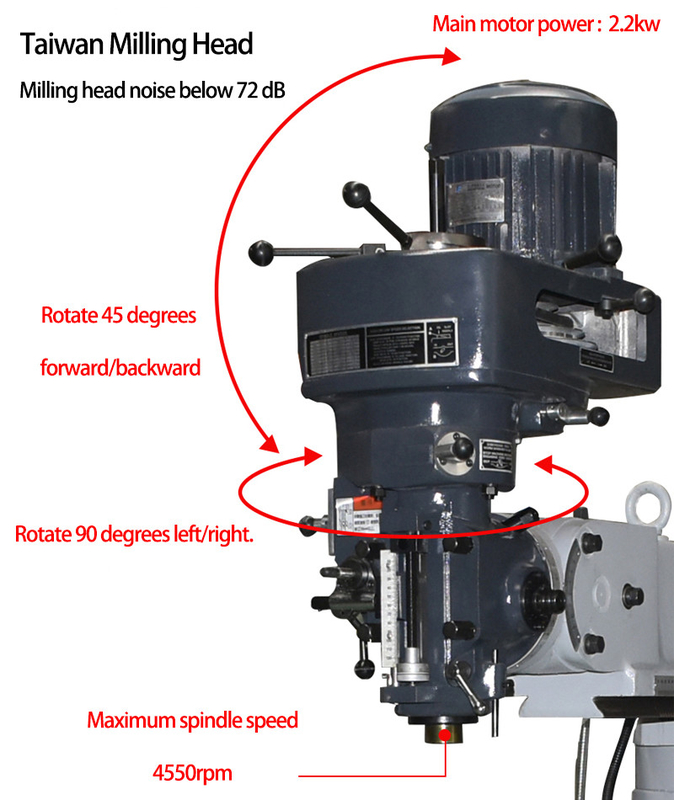

1. The machine is compact in structure, small in size and high in flexibility. The milling head can rotate 90° around and 45° before and after, and the ram can not only expand back and forth, but also rotate 360o in the horizontal plane, thus greatly expanding the effective working range of the machine tool.

2. The machine adopts advanced Meehanna casting, with strong structure, no deformation and good stability. The main shaft is made of chrome-molybdenum alloy, and after precision grinding by tempering heat treatment, it is equipped with precision angular ball bearing combination, which has strong cutting force and excellent precision.

3. The three-axis corner seat nut is made of advanced phosphor bronze (PBC-2), with good wear resistance and long service life.

4. The X and Y guide rails are attached with TURCITE-B wear-resistant pieces, which are light in operation, low in wear rate and durable.

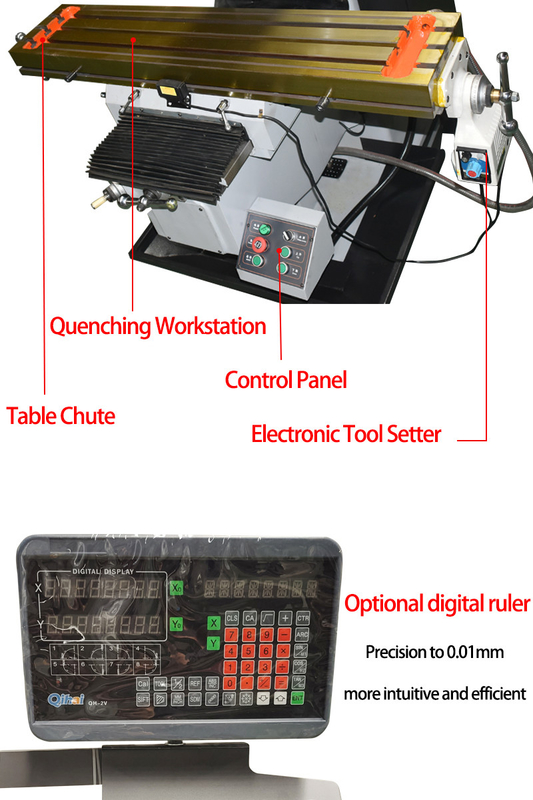

5. The work table is finely ground after hardening, which is not easy to wear.

6. Equipped with manual oil pump, centralized lubrication of workbench and lifting platform.

7. Equipped with improved electrical box and controller, with 24V, 110V, 220V output socket.

Product Paramenters:

SPECIFICATIONS	Unit	4H
Table area	mm	1270×254
Table longitudinal stroke (X)	mm	750
Table transverse stroke (Y)	mm	380
Vertical stroke(z)	mm	400
Taper of main shaft hole		R8
Distance from the end face of the spindle to the working table	mm	80~490
Distance between spindle center and pillar guide rail	mm	100~650
Spindle speed range	r/min	80~5440
Table "T" number of slots		3
Width of "T" groove	mm	16
T slot spacing	mm	80
Main motor power	Kw	2.2
Installation dimensions	mm	1566×1650×2100
Gross weight	Kg	1100

Industry application:

OUR Service:

Ensure you receive a high quality machine

1. Every parts need be inspected

2. Over 100 production process control

3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:



 Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

Exhibition:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.



Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
