Place of Origin:
CHINA
Brand Name:
SMTCL
Certification:
CE ISO certification
Model Number:
HTC 50n
Video
Video
Product Description:
Product Features:
|
Item
|
UNIT
|
HTC 50n
|
|
Max. swing over bed
|
mm
|
Φ650
|
|
Max. swing over carriage
|
mm
|
Φ500
|
|
Max. cutting diameter (disc/shaft)
|
mm
|
Φ500
|
|
Max. cutting length
|
mm
|
500/1000/1500/2000/2500
|
|
Spindle bore diameter
|
mm
|
Φ80
|
|
Form of spindle nose
|
|
A2-8
|
|
Max. diameter through bar
|
mm
|
Φ65
|
|
Main motor power (continuous / 30min)
|
kw
|
22/30
|
|
Range of spindle speed / Max. output torque
|
r/min
|
35~3000 / 860
|
|
Chuck diameter
|
inch
|
10”
|
|
Max. travel of X-axis
|
mm
|
270
|
|
Max. travel of Z-axis
|
mm
|
600/1100/1600/2100/2600
|
|
Rapid speed (X /Z axis)
|
m/min
|
12/12
|
|

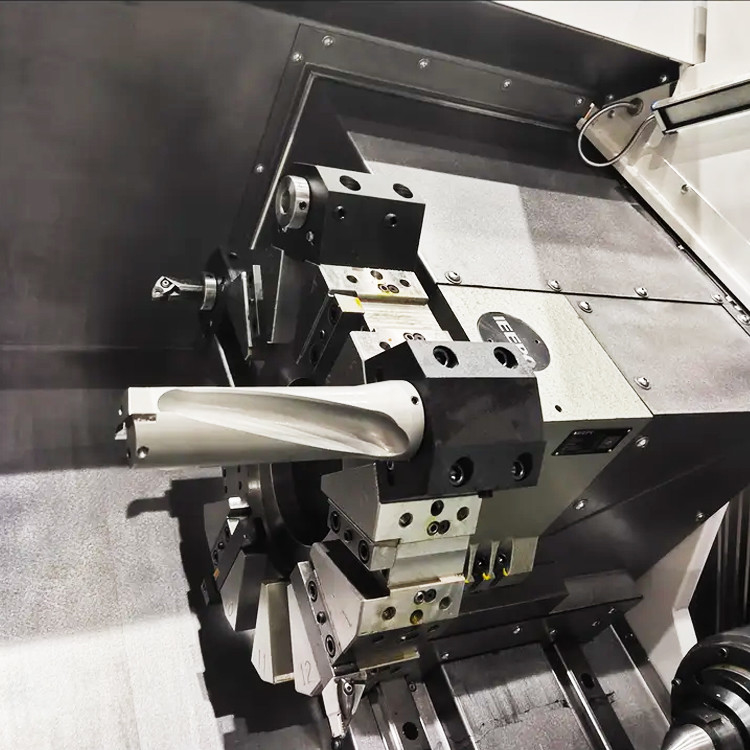

Form of tool turret
|
|
Horizontal 12-position turret
|
|
Size of tool shank
|
mm
|
25X25/Φ50
|
|
Positioning accuracy (X axis)
|
mm
|
0.01
|
|
Positioning accuracy (Z-axis)
|
mm
|
0.015/0.015/0.020/0.025/0.035
|
|
Repositioning accuracy(X axis)
|
mm
|
0.005
|
|
Repositioning accuracy(Z-axis)
|
mm
|
0.007/0.007/0.010/0.013/0.020
|
|
Machining accuracy
|
|
IT6
|
|
Max. weight of disc workpiece
|
kg
|
200
|
|
Max. weight of shaft workpiece
|
kg
|
800
|
|
weight of machine
|
kg
|
5500/7500/9000/11000/12500
|
|
Overall dimensions of machine (LxWxH)
|
mm
|
4050x2286x2260; 4550x2286x2260; 5050x2286x2260;
5500x2286x2260; 6050x2286x2260
|
Industry application:
OUR Service:
1. Assemble and debug before delivery
