Economical CNC Lathe Flat Bed CNC Lathe Machine CAK4085 CNC Lathe Turning Machining Metal Lathe

Economical CNC Lathe Flat Bed CNC Lathe Machine CAK4085 CNC Lathe Turning Machining Metal Lathe

CNC Lathe Machines

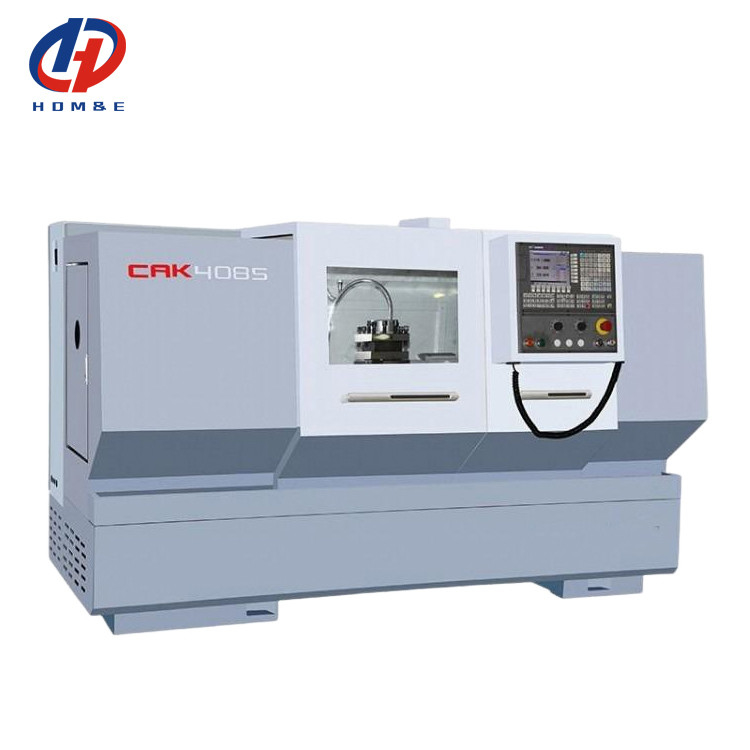

CAK4085 CNC Turning Lathe

Flat bed cnc lathe

Contact Us
Request A Quote
Product Details
Spindle Motor:
5-15 HP
Cutting Feed Rate:
0.001-0.005 IPR
Max Turning Length:
20-30 Inches
Chuck Size:
6-10 Inches
Control System:
CNC
Tailstock:
Yes/No
Axis:
2-Axis
Max Turning Diameter:
20-30 Inches
Payment & Shipping Terms
Product Description

Economical CNC Lathe Flat Bed CNC Lathe Machine CAK4085 CNC Lathe Turning Machining Metal Lathe 0

Product Description:
Economical CNC Lathe Flat Bed CNC Lathe Machine CAK4085 CNC Lathe Turning Machining Metal Lathe
The new CAK series CNC lathe inherits the performance and structural advantages of the traditional CAK products, and has significantly improved the processing accuracy, vibration resistance, function and reliability, and the new appearance design makes the waterproof performance of the machine tool have a qualitative leap. CAK series CNC lathe is the symbol of Chinese famous brand! General Technology Group Shenyang Machine Tool Co., Ltd. will always accompany you!
Product Details:

Economical CNC Lathe Flat Bed CNC Lathe Machine CAK4085 CNC Lathe Turning Machining Metal Lathe 1

Specification:
Item
Unit
CAK4085
Max.parts length
mm
1000
Max cutting length
mm
850
Max swing diameter over bed
mm
φ400
Max.swing diameter over slide
mm
φ200
Max cutting diameter
mm
φ400
Spindle nose type

A1-6
Chuck diameter
mm
φ250
Spindle bore
mm
φ53
Single spindle speed range
r/min
100-2400
Rated power of main motor
kw
7.5 (Main servo motor)
Tailstock quill diameter
mm
φ60
Tailstock quill travel
mm
140
Turret type

Vertical 4 positions
Tool shank size
mm
□20×20
X/Z axis rapid traverse
m/min
6/12
Machining accuracy

IT6~IT7
Machine net weight
kg
1960
Overall dimension (LxWxH)
mm
2470×1500×1580
Standard configuration:
1.Control system:GSK

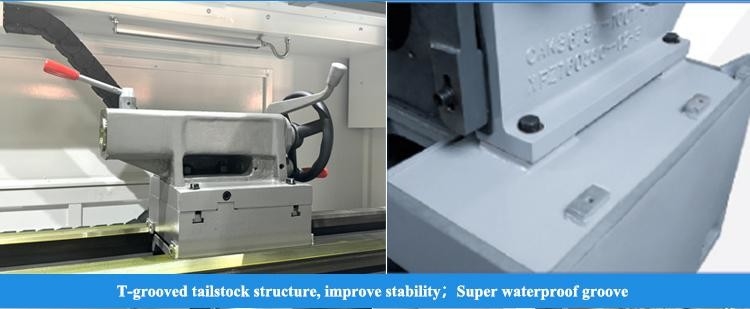

2.Tailstock:Manual

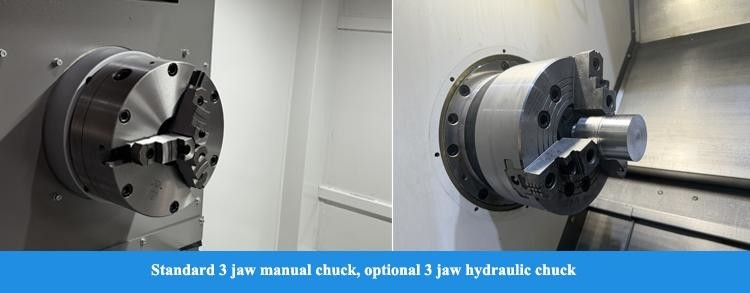

3.Φ250mm 3-jaw manual chuck

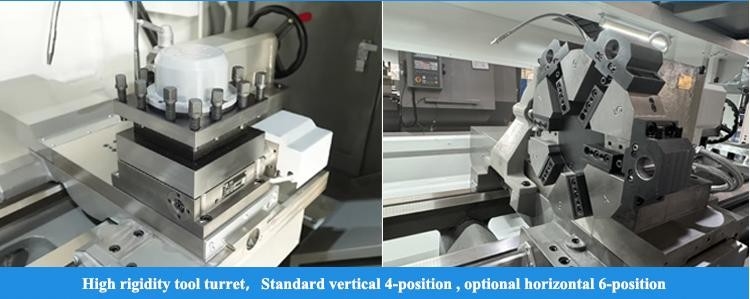

4.Vertical 4-position turret
5.Chip box
Selective configuration:
1. Control system:FANUS,SIEMENS
2. Tailstock:Hydraulic
3.Φ200mm 3-jaw manual chuck
4.Φ200mm 4-jaw manual chuck
5.Φ250mm 4-jaw manual chuck
6. 8”/10’’ Hydraulic chuck
7. Horizontal 6-position turret

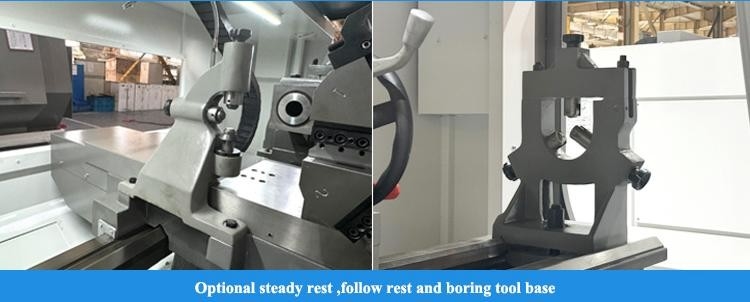

8. Steady rest Φ30~Φ80mm(Roller type)
9. Follow rest Φ30~Φ80mm
10. Rear chip conveyor
11. Safety lock
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us

Economical CNC Lathe Flat Bed CNC Lathe Machine CAK4085 CNC Lathe Turning Machining Metal Lathe 2

Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level. Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory

Economical CNC Lathe Flat Bed CNC Lathe Machine CAK4085 CNC Lathe Turning Machining Metal Lathe 3

FAQ
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
