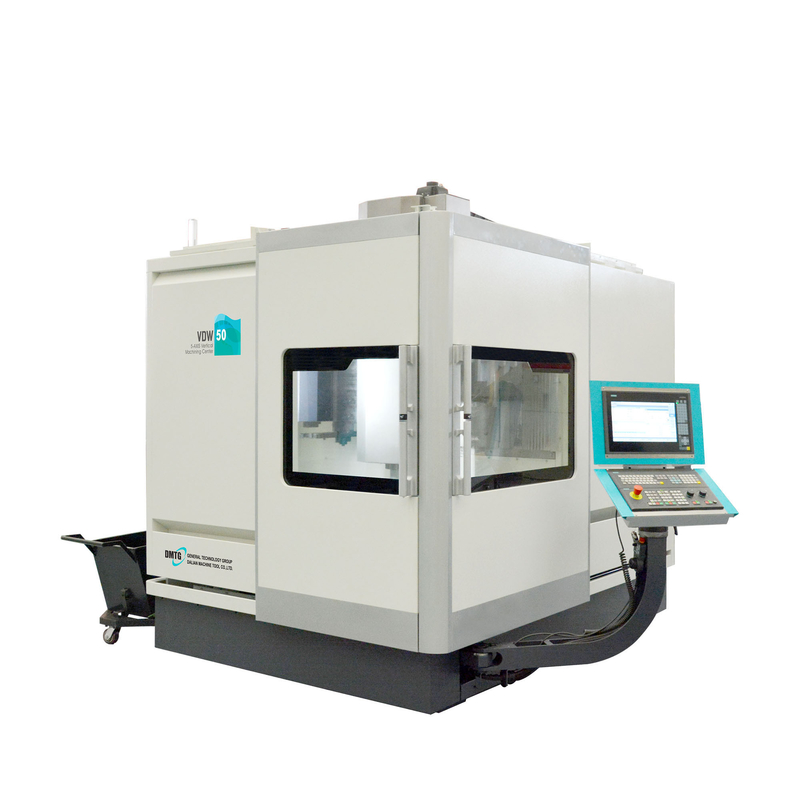

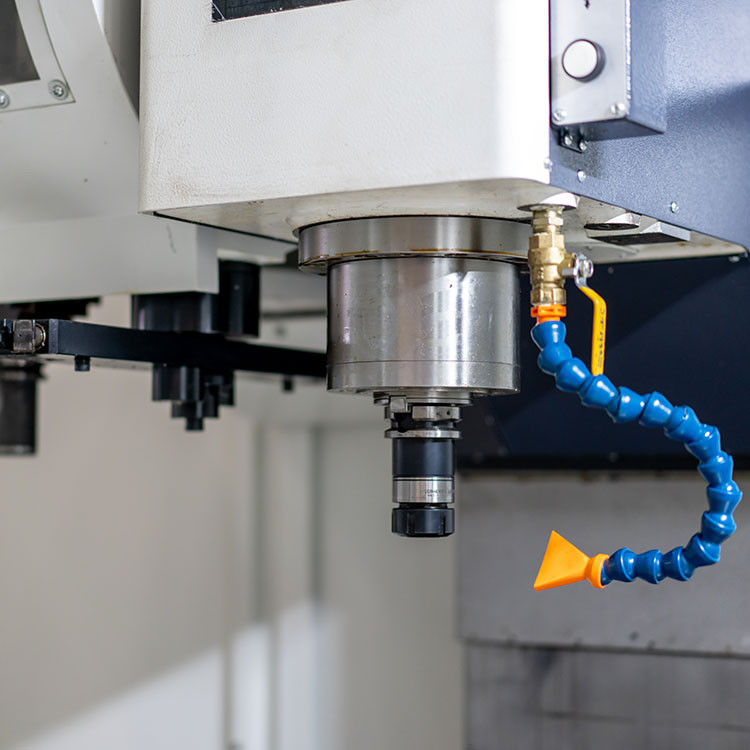

VDW50 5 Axis Vertical Machining Center CNC Machining Center High Speed
| Item | Unit | VDW50 |
| Worktable size | mm | 500 |
| Max.load | kg | 300(0°),200(0-90°) |
| Clamping area | mm | 600*460 |
| T-slots(numbers*wigth*center distance) | 8*14*45° | |
| Table indexing(B axis*C axis) | 175°(left110°~right65°)*360° | |
| Rotating speed(B/C axis) | rpm | 17.75 |
| X/Y/Z Axis travel | mm | 500/450/400 |
| X/Y/Z Axis guide way type | Linear guideway | |
| Distance from spindle nose to table | mm | 150-600 |
| X/Y/Z axis rapid traverse | m/min | 30/30/30(opt:36/36/36) |
| X/Y/Z axis cutting feedrate | m/min | 0-20 |
| Spindle type | Direct drive spindle | |
| Spindle motor power | kw | 7(Ps1)/15(Pmax) |
| Spindle motor torque | N.m | 45(Ms1)/95(Mmax) |
| Max.spindle speed | rpm | 12000 |
| Tool magazine capacity | 24T Arm | |
| Tool shank type | HSK-A63 | |
| Max tool weight | kg | 8 |
| Max.tool diamater(w/o adjacent tools) | mm | 75 |
| Max.tool length | mm | 300 |
| Tapping range(steel) | M3-M24 | |
| Max.drilling diameter(steel) | 36 | |
| X/Y/Z axis positioning accuracy | mm | 0.008/0.008/0.008 |
| X/Y/Z axis repeatability accuracy | mm | 0.005/0.005/0.005 |
| B/C axis positioning accuracy | inch | 10",8" |
| B/C axis repeatability accuracy | inch | 4",3" |
| CNC controller | SIEMENS SINUMERIK 840Dsl,HEIDENHAIN iTNC640 | |
| Machine dimensions(L/W/H) | mm | 5242*4650*3260 |
| Machine weight | kg | 8000 |
Standard configurations
● Ball screw and linear guideway
● Chain-type chip conveyor and chip cart
● Air conditioner
● 24T Arm-type ATC
● Spindle air blow
● Rigid tapping
Optional
●40T arm-type ATC
●15000rpm Direct drive spindle
●2Mpa coolant through spindle/7Mpa coolant through spindle
●3 linear scale(Heidenhain)
