Place of Origin:
China
Brand Name:
HD M&E
Certification:
ISO certification
Model Number:
X5025B

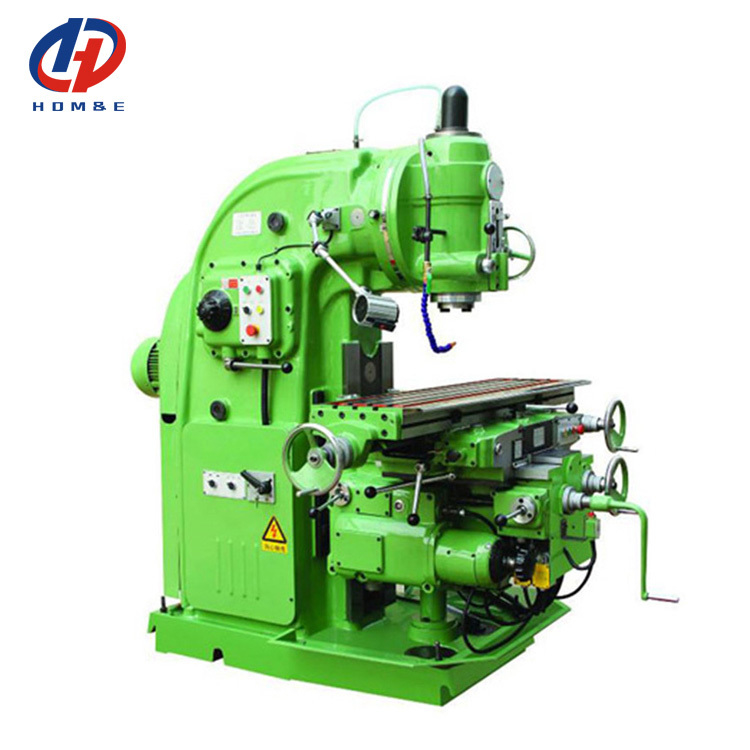

X5025B vertical knee-type milling machine drilling and milling machine for sale
Product Presentation
X5025B vertical knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process different work pieces. Equipped with optional accessories, machine can be applicable to versatile processing. Spindle gear box is lubricated by cycloid pump to make sure gears can be cooled & lubricated well. All feeding guideway & ball screw pairs are centralization lubricated by manual oil ejector.
Product Configuration
| Main specifictions | Unit | X5025B | X5032B |
| Worktable Size | mm | 250×1100 | 320×1320 |
| T slots (N×W×D) | mm | 3×14×63 | 3×18×80 |
| Max. load bearing of worktable | Kg | 250 | 500 |
| Longitudinal travel (Manual/Power) X | mm | 720 | 800/780 |
| Cross travel (Manual/Power) Y | mm | 270 | 300/280 |
| vertical travel (Manual/Power) Z | mm | 410 | 410/400 |
| Max.rotary angle of vertical milling head | ±45° | ±45° | |
| Arbor diameter | mm | Ф22,Ф27 | Ф32 Ф40 |
| Distance from spindle center to vertical guide way | mm | 290 | 380 |
| Distance from worktable center to vertical guide way | mm | 160-430 | 235 ～ 535 |
| Distance from spindle nose to worktable surface | mm | 60 ～ 470 | 60 ～ 460 |
| Spindle hole taper | 7:24 NO:40 | 7:24 No.50 | |
| Spindle quill travel | mm | / | 75 |
| Spindle speed steps | steps | 12 | 18 |
| Spindle speed range | r/min | 35 ～ 1600 | 30 ～ 1500 |
| Feed speed steps | steps | 12 | 18 |
|
Feed speed range (X/Y/Z) |
mm/ min |
12 ～ 560 12 ～ 560 5 ～ 226 |
15 ～ 750 15 ～ 750 5.7 ～ 280 |
| Rapid feed speed range (X/Y/Z) |
mm/ min |
1780/1780/720 | 2250/2250/844 |
| Main motor power | Kw | 4 | 7.5 |
| Feed motor power | Kw | 0.75 | 1.5 |
| Machine dimension | mm | 1670/1350/1800 | 2307/1707/2096 |
| Package dimension | mm | 1660/1570/2180 | 2200/1770/2270 |
| Machine weight | Kg | 1800 | 3200 |
| Voltage/ Frequency | V/Hz | 380/50 | 380/50 |
