Place of Origin:
China
Brand Name:
HD M&E
Certification:
ISO certification
Model Number:
X6036

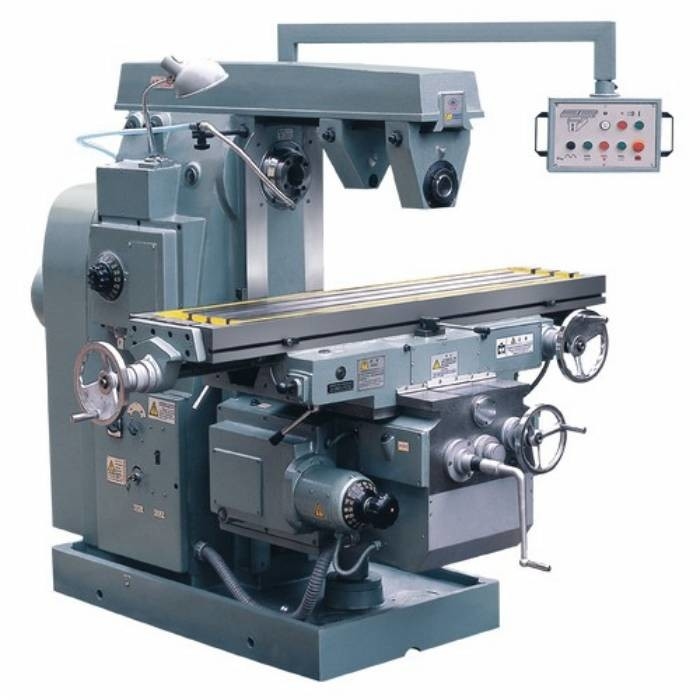

High reliability X6036 horizontal knee-type milling machine price
Product Presentation
1. The worktable apply to automatic and rapid feed.
2. Hardened and ground slide ways ensure high accuracy.
3. With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
4. With enough rigidity, machine can bear heavy duty processing.
5. Complete coolant and lubrication system.
6. DRO equiment is optional.
Product Configuration
| Item | Unit | X6036 | X6142 |
| Worktable size | mm | 360x1600 | 420×1800 |
| T slots (N×W×D) | mm | 3×18×80 | 3×18×90 |
| Max. load bearing of worktable | Kg | 500 | 800 |
| Longitudinal travel (Manual/Power) X | mm | 1020/1000 | 1200/1180 |
| Cross travel (Manual/Power) Y | mm | 300/280 | 360/350 |
| vertical travel (Manual/Power) Z | mm | 410/400 | 470/450 |
| Max. rotary angle of worktable | / | ±45° | |
| Arbor diameter | mm | Φ22 Φ27 Φ32 | Φ32 Φ50 |
| Distance from spindle center to arm | mm | 155 | 200 |
| Distance from table center to vertical guide way | mm | 235-535 | 280-650 |
| Distance from spindle center to worktable surface | mm | 50-460 | 40-500 |
| Spindle hole taper | 7:24 No.50 | 7:24 No.50 | |
| Spindle speed steps | steps | 18 | 18 |
| Spindle speed range | r/min | 30-1500 | 30-1500 |
| Feed speed steps | steps | 18 | 18 |
| Feed speed range (X/Y/Z) | mm/min | 15 ～ 750 15 ～ 750 5.7 ～ 280 |
22 ～ 1100 22 ～ 1100 8.3 ～ 410 |
| Rapid feed speed range (X/Y/Z) | mm/min | 2250/2250/844 | 2400/2400/900 |
| Main motor power | Kw | 7.5 | 11 |
| Feed motor power | Kw | 1.5 | 3 |
| Machine dimension | mm | 2327/2067/1720 | 2522/2262/2047 |
| Package dimension | mm | 2200/2070/2280 | 2470/2300/2300 |
| Machine weight | kg | 2850 | 4200 |
| Voltage/ Frequency | V/Hz | 380/50 | 380/50 |
