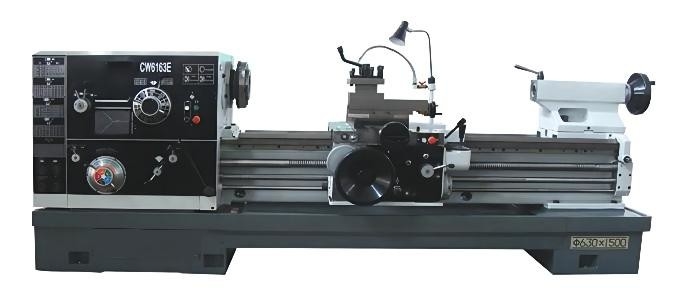

CW6180E/CW6280E China Universal Heavy Duty Horizontal lathe machine
Product Presentation
Product Configuration
| Product model | UNIT | CW6163E | CW6263E | CW6180E | CW6280E | CW61100E | CW62100E | |
| specification | ||||||||
| Max. swing diameter over bed | mm | Ø630 | Ø800 | Ø1000 | ||||
| Max.swing diameter over cross slide | mm | Ø350 | Ø480 | Ø710 | ||||
| Max.swing diameter in gap | mm | — | Ø800 | — | Ø1000 | — | Ø1230 | |
| Length in gap | mm | — | 350 | — | 350 | — | 350 | |
| Max. workpiece length | mm | 1000/1500/2000/3000/4000/5000/6000 | ||||||
| Max. cutting length | CW61xxx | mm | 850/1350/1850/2850/3850/4850/5850 | |||||
| CW62xxx | 600/1100/1600/2600/3600/4600/5600 | |||||||
| Spindle | ||||||||
| spindle nose | C11 *D11 | |||||||
| Spindle bore | mm | Ø100(C11)(Allowable bar diameter≤Ø98) *Ø105(D11)(Allowable bar diameter≤Ø103) opt:Ø130(Allowable bar diameter≤Ø128) |
||||||
| Chuck size | mm | Ø315 | Ø400 | Ø400 | ||||
| Taper of spindle bore | Metric 120(1:20) Opt:Spindle bore Ø130- Metric 140(1:20) |
|||||||
| Max.Spindle torque | Nm | 2400 | ||||||
| Spindle speed ranges | rpm | 7.5-1000(18 speeds) | ||||||
| Spindle centre height | mm | 315 | 400 | 515 | ||||
| Spindle motor power | 11kw/1460rpm(50HZ) Opt:15kw/1460rpm(50HZ) | |||||||
| Tailstock | ||||||||
| Diameter of tailstock quill | mm | Ø100 | ||||||
| Travel of tailstock quill | mm | 250 | ||||||
| Taper of tailstock quill | No.6 MT | |||||||
| Feeds&Threads (metric screw *inch screw) | ||||||||
| Longitudinal feed | metric screw | mm/r | 64 Speeds 1/1 0.1-1.52 ； 16/1 1.6-24.3 | |||||
| inch screw | in/r | 64 Speeds *1/1 0.0019〜0.0612 ； *16/1 0.0305-0.98 | ||||||
| Cross feed | 1/2 times of the longitudinal feed | |||||||
| Metric threads | mm | 0.5〜240 (52 Kinds) *1-256 (57 Kinds) |
1-240 (50 Kinds) *1-256 (57 Kinds) |
0.5〜240 (52 Kinds) *1-256 (57 Kinds) |
||||
| Modular threads | mm | 0.5 〜120 (53 Kinds) *0.5 〜128 (57 Kinds) | ||||||
| Inch threads | TPI | 28-1(34 Kinds) *32〜1/16(67 Kinds) |
14-1(26 Kinds) *32-1/16(67 Kinds) |
28-1(34 Kinds) *32-1/16(67 Kinds) |
||||
| Diametral pitch threads | DP | 28-1(24 Kinds) *32〜1/8(57 Kinds) | ||||||
| Tool post | ||||||||
| Max.tool shank size | mm | 30X30 | ||||||
| Travel of top slide | mm | 200 | ||||||
| Swivel angle of top slide | ±90° | |||||||
| machine dimensions (L*W*H) |
mm | 3180X1340X1830(1000) 3630X1340X1830 (1500) 4230X1340X1830(2000) 5130X1340X1830(3000) 6040X1430X1830(4000) 7120X1430X1830(5000) 8240X1430X1830(6000) | 3180X1380X1830(1000) 3630X1380X1830(1500) 4230X1380X1830 (2000) 5130X1380X1830 (3000) 6040X1470X1830 (4000) 7120X1470X1830 (5000) 8240X1470X1830(6000) | 3180X1460X1830(1000) 3630X1460X1830 (1500) 4230X1460X1830(2000) 5130X1460X1830(3000) 6040X1550X1830 (4000) 7120X1550X1830(5000) 8240X1550X1830(6000) | ||||
| Machine weight | CW61xxx | kg | 3900/4200/4500/5000/ 5800/6500/7300 |
4100/4400/4700/5200/ 6500/7200/7700 |
4350/4650/4950/5450/ 6800/7300 |
|||
| CW62xxx | 4050/4350/4650/5150/ 5950/6650/7450 |
4250/4550/4850/5350/ 6600/7300/7850 |
4500/4800/5100/5600/ 6950/7450 |
|||||
| Standard configurations | |
| 3-Jaw chuck | 4-way tool post |
| Steady rest(≥3000mm-Standard <3000mm-Option) | |
| Follow rest(≥3000mm-Standard <3000mm-Option) | |
| Standard toolkit | |
| Optional configurations | ||
| 4-Jaw chuck | Chuck guard | |
| Tool post guard | Rear splash guard | |
| Ø130Diameter of spindle bore | 15kW spindle motor | |
| Center of tailstock | Face plate | Thread dial |
| Drive plate | Taper-turning attachment | DRO |
| Anchor bolts | Spindle center and center sleeve | |
| Adjustable pads | Foot brake(1000mm~3000mm Available) | |
