Place of Origin:
China
Certification:
CE, ISO certification
Model Number:
CKA6166
Video
Video
Video

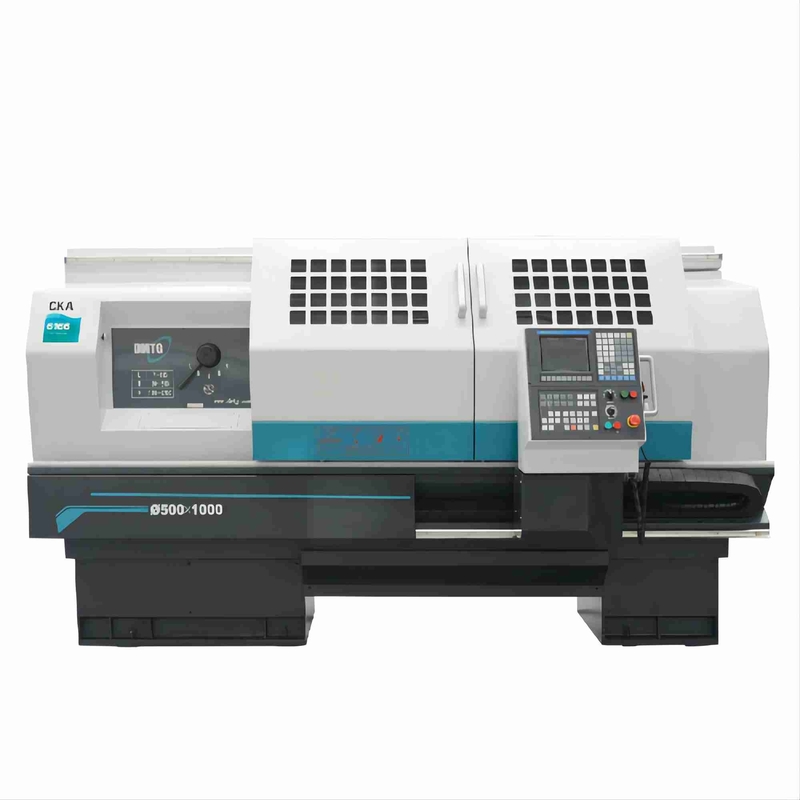

China CKA Series CKA6166 Flat Bed CNC Lathe Torno CNC Lathe Machine Price
Product Configuration
| Configuration | CKA6136 | CKA6140 | CKA6150 | CKA6166 | CKA6163A | CKA6180A | CKA61100A | |
| Guide way type | Box way | ● | ● | ● | ● | ● | ● | ● |
| Main drive speed change form | Manual servo motor | ● | ● | ● | ● | O | O | O |
| Automatic servo motor | O | O | O | O | O | O | O | |
| Double speed motor | — | — | O | O | — | — | — | |
| Common motor | — | — | — | — | O | O | O | |
| Manual inverter-driven motor | O | O | O | O | ● | ● | ● | |
| Automatic inverter-driven motor | O | O | O | O | O | O | O | |
| Single spindle | CKA6136i | CKA6140i | CKA6150i | — | — | — | — | |
| CNC | FANUC 0i-TF(5) | ● | ● | ● | ● | ● | ● | ● |
| GSK-980TDi | O | O | O | O | O | O | O | |
| SIEMENS | O | O | O | O | O | O | O | |
| KND | O | O | O | O | — | — | — | |
| HNC-808D | O | O | O | O | — | — | — | |
| MITSUBISHI | O | O | — | — | — | — | — | |
| Chuck | Manual | ● | ● | ● | ● | ● | ● | ● |
| Domestic hollow hydraulic chuck | O | O | O | O | — | — | — | |
| Domestic solid hydraulic chuck | O | O | — | — | — | — | — | |
| Imported hollow hydraulic chuck | O | O | O | O | O | O | O | |
| Imported solid hydraulic chuck | O | O | O | O | O | O | O | |
| Tailstock | Manual tailstock | ● | ● | ● | ● | ● | ● | ● |
| Hydraulic tailstock | O | O | O | O | O | O | O | |

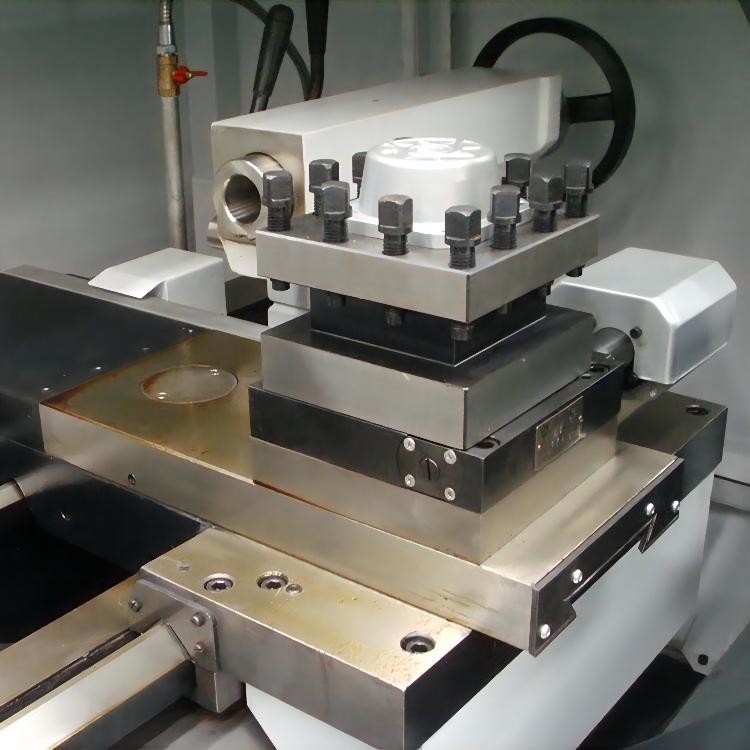

| Tool post | Vertical 4-positon | ● | ● | ● | ● | ● | ● | ● |
| Horizontal 6-positOn | O | O | O | O | O | O | O | |
| Horizontal 8-positon | — | — | O | O | O | O | O | |
| Coolant System | Forced air cooling | ● | ● | ● | ● | — | — | — |
| Heat exchanger for electric panel | O | O | O | O | ● | ● | ● | |
| Electrical thermal control unit | O | O | O | O | O | O | O | |

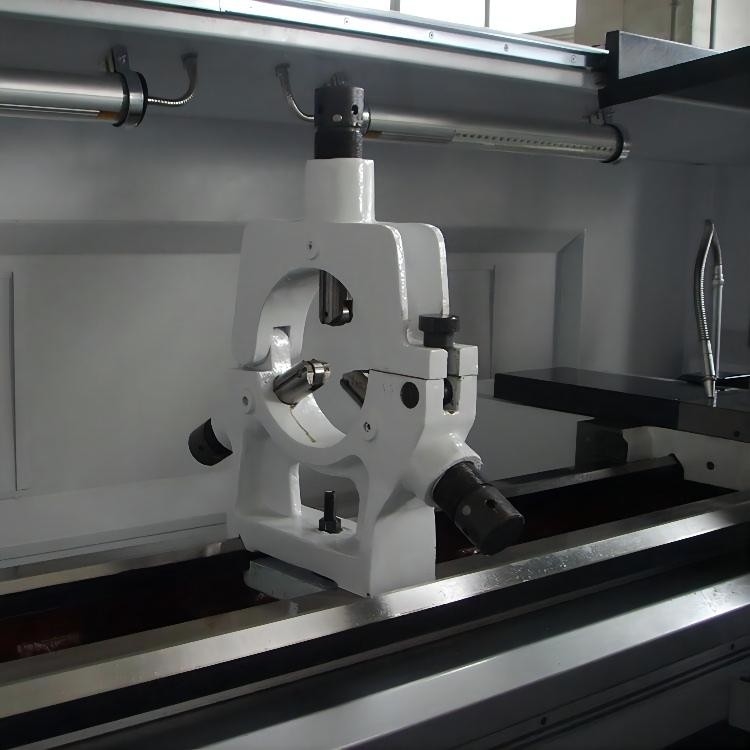

| other options or feature | Steady rest | O | O | O | O | O | O | O |
| Follower rest | O | O | O | O | O | O | O | |
| 4-Jaw chuck | O | O | O | O | O | O | O | |
| External handwheel | O | O | O | O | O | O | O | |
●---Standard O---Optional —--N/A
Main Specification
| Product model | UNIT | CKA6150 | CKA6166 | CKA6150i | |
| Max. swing diameter over bed | mm | Ø500 | Ø660 | Ø500 | |
| Max.swing diameter over cross slide | mm | Ø280 | Ø430 | Ø280 | |
| Max. workpiece length | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000 | |
| Max. cutting length | mm | 680/930/1430/1930 | 680/930/1430/1930 | 680/930 | |
| Max.turning diameter | Vertical 4-position | mm | Ø500 | Ø560 | Ø500 |
| Horizontal 6-position | mm | Ø400 | Ø400 | Ø400 | |
| Horizontal 8-position | mm | Ø370 | Ø370 | Ø370 | |
| Spindle center height | mm | 250 | 330 | 250 | |
| Spindle motor power | kW | 7.5/11 | 7.5/11 | 11/15 | |
| Spindle bore | mm | Ø82 | |||
| Taper of spindle bore | Ø90 1:20 | Ø90 1:20 | Ø100 1:20 | ||
| Type of spindle nose | D8 | D8 | A2-8 | ||
| Spindle speed ranges | r/min | 7-2200 3 range manual |
7-2200 3 range manual |
30-3000 Single spindle |
|
| Taistock quill diameter | mm | Ø75 | |||
| Tailstock quill travel | mm | 150 | |||
| Tailstock quill taper | No 5 MT | ||||
| Max.travel of X-axis | mm | 280 | 305 | 280 | |
| Max.travelof Z-axis | mm | 685/935/1435/1935 | 685/935/1435/1935 | 685/935 | |
| Rapid traverse of X/Z axis | m/min | 4/8(750-1500) 4/6(2000) |
4/8(750-1500) 4/6(2000) |
4/8 | |
| Tool shank size (Vertical 4-positon) | mm | 25X25 | |||
| X/Z axis positioning accuracy | mm | 0.018/0.021(750) 0.024(1000) 0.026(1500,2000) |
0.018/0.021(750) 0.024(1000) 0.026(1500,2000) |
0.018/0.021(750) 0.024(1000) |
|
| X/Z axisrepeatability accuracy | mm | 0.006/0.008(750) 0.011(1000) 0.014(1500,2000) |
0.006/0.008(750) 0.011(1000) 0.014(1500,2000) |
0.006/0.008(750) 0.011(1000) |
|
| machine dimensions (L*W*H) |
mm | 2580X1750X1620(750) 2830X1750X1620(1000) 3330X1750X1620(1500) 3830X1750X1620(2000) |
2580X1750X1620(750) 2830X1750X1620(1000) 3330X1750X1620(1500) 3830X1750X1620(2000) |
2580X1750X1620(750) 2830X1750X1620(1000) |
|
| Machine weight | kg | 2550/2600/2700/2800 | 2700/2750/2850/2950 | 2550/2600 | |
Workpiece Sample
