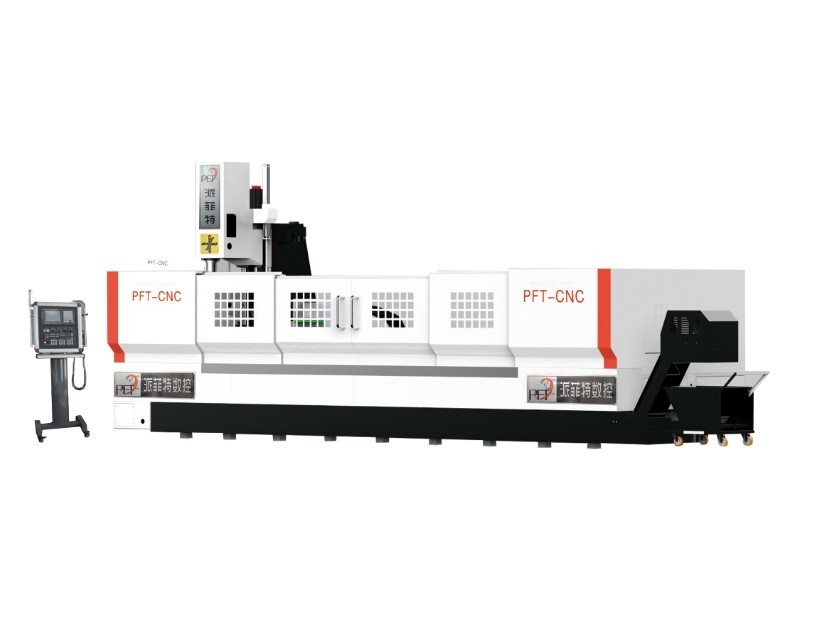

PFT-T Series Moving Column Industrial Profile Processing Center(Casting Bed)
| Item | Unit | PFT-T | |
| Stroke | X aixs travel | mm | 2500-4500-6500 |
| Y aixs travel | mm | 550 | |
| Z aixs travel | mm | 550 | |
| Spindle | Spindle speed | rpm | 12000 |
| Spindle taper | BT40 | ||
| Tool | Toll magazine | arm type | |
| Pull studs format | degree | 45 | |
| Capacity of tools magazine | pcs | 24 | |
| Tool change time | sec | 2 | |
| Moving Speed | X moving speed | m/min | 60 |
| Y/Z moving speed | m/min | 28/28 | |
| X/Y/Z feeding speed | mm/min | 15000 | |
| Power of motor | Spindle driven motor | KW | 7.5/11 |
| Lubricating system | Lubricating system | automative lubricating | |
| Cooling system | water or aotomization | ||
| Precision | Accuracy of X axis | mm | 0.05 |
| Accuracy of Y/Z axis | mm | 0.02 | |
| Repeat presision(x/y/z) | mm | ±0.01mm | |
| Spec of machine | Air pressure | Mpa | 0.5-0.8 |
| Machine size | mm | 4500-6500-8500*3000*2500 | |
| Weight | kg | 10000-16000 | |
