Place of Origin:
China
Brand Name:
smtcl symg
Certification:
CE ISO
Model Number:
CA6161B/A CA6261B/A
Video
Video
Product Features

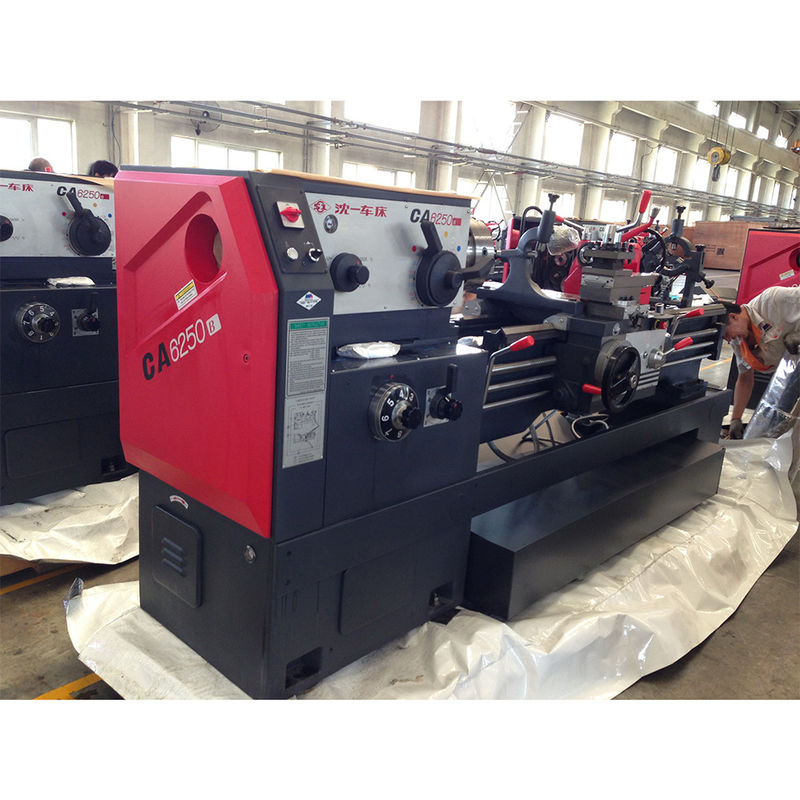

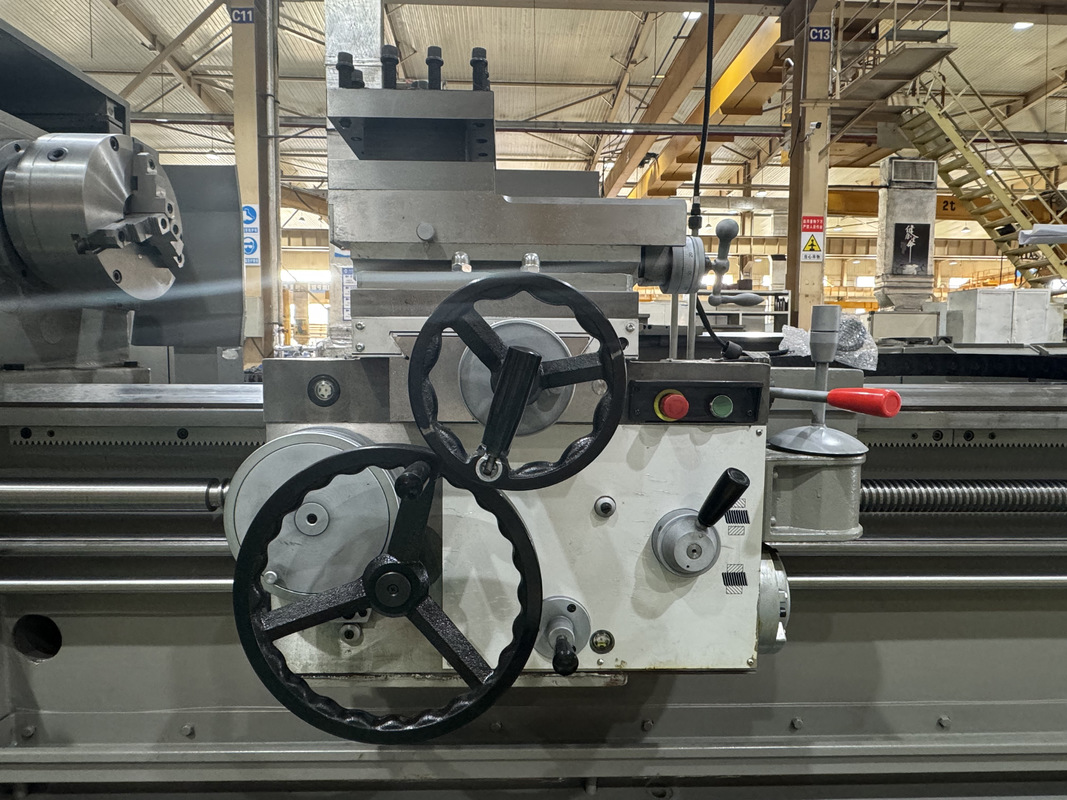

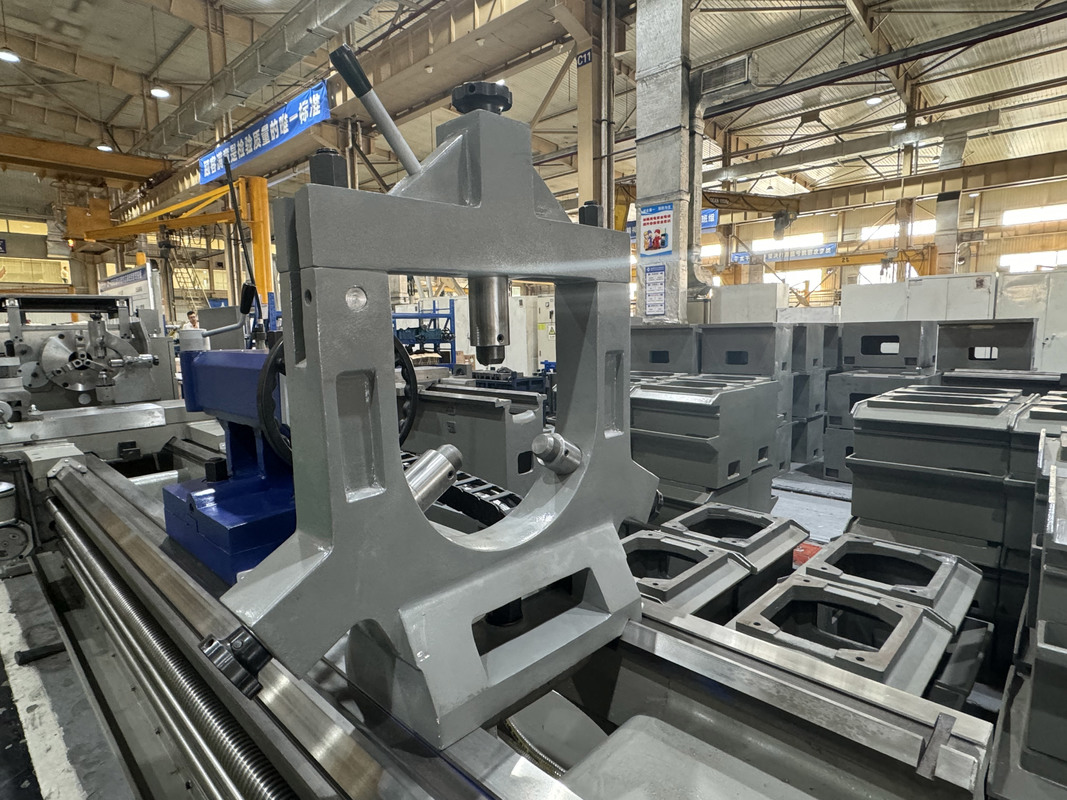

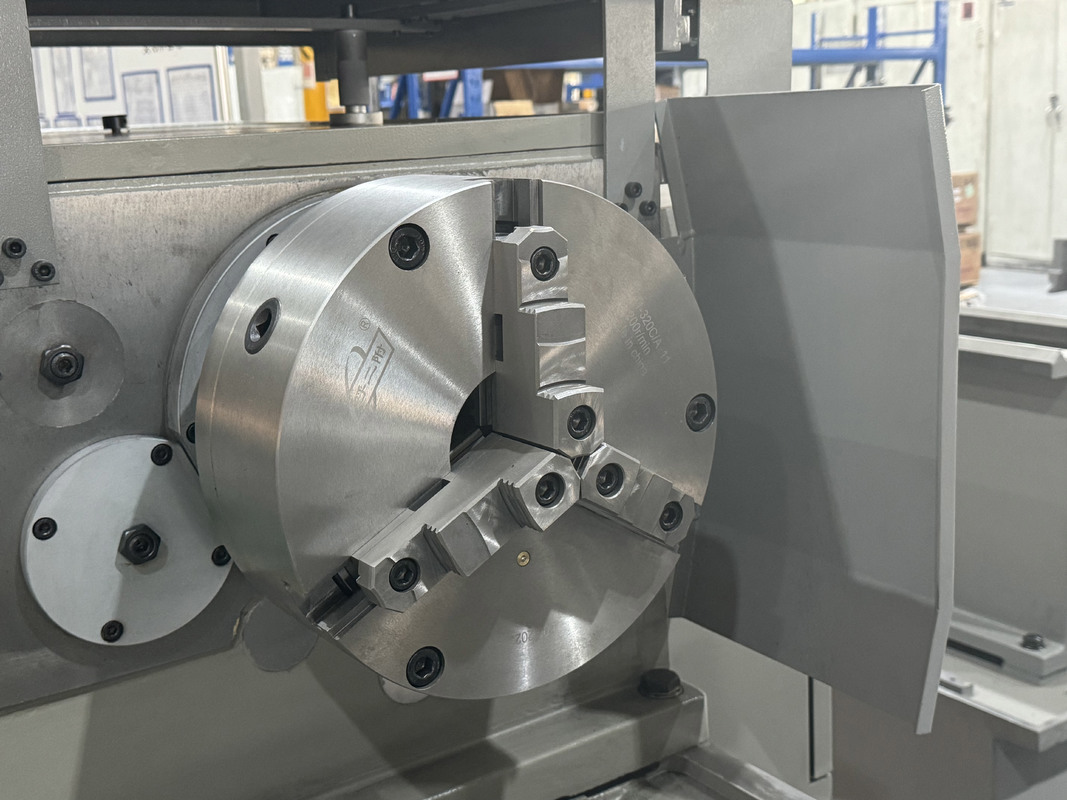

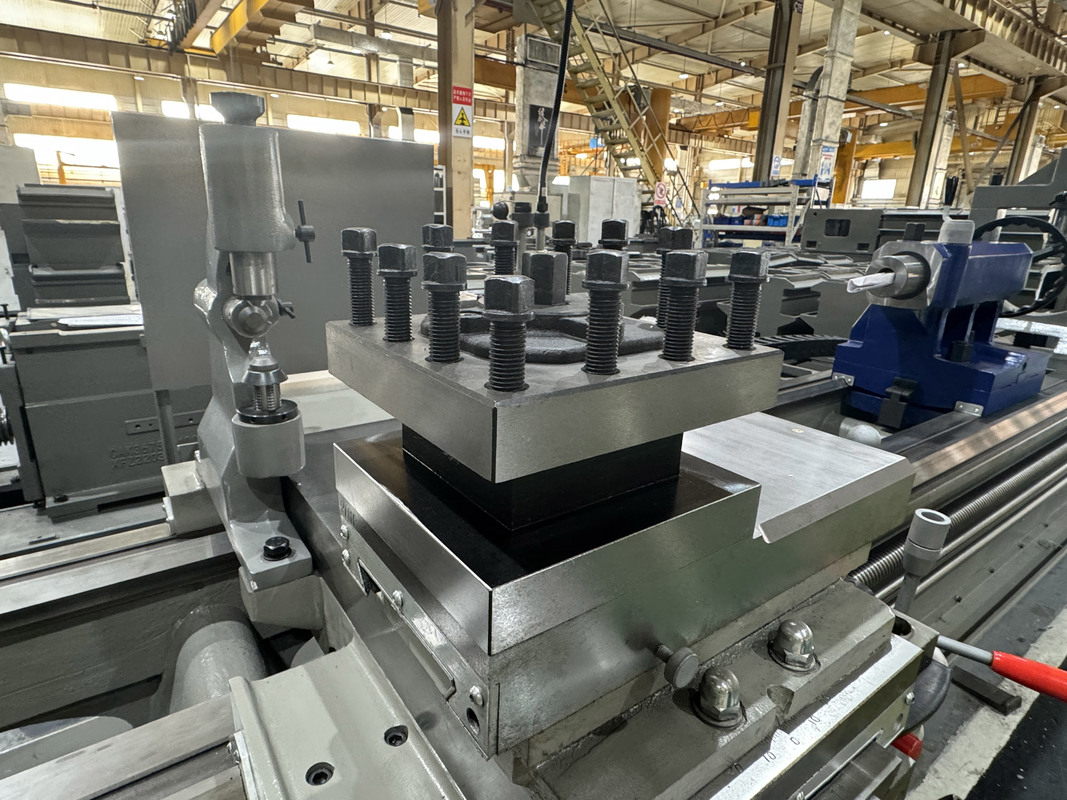

B/A series horizontal lathes can undertake various turning jobs, such as turning inner and outer cylindrical surfaces, conical surfaces and other rotating surfaces. Turning various metric, inch, modulus and diametral pitch threads, as well as drilling, reaming and drawing grooves.
This series of machine tools can process steel, cast iron and non-ferrous metals and other materials. The dimensional accuracy of the parts processed on this series of machine tools can reach IT7 level, and a smaller surface roughness value can be obtained.
| Item | Unit | CA6140B/ A CA6240B/A | CA6150B/ A CA6250B/A | CA6161B/A CA6261B/A | ||||
| Max. swing dia over bed | mm | 400 | 500 | 610 | ||||
| Max. swing dia over carriage | mm | 210 | 300 | 370 | ||||
| Max swing dia over gap/ Width of gap | mm | 630*210 | 720*210 | 830*210 | ||||
| Max workpiece length | mm | 1000/900;1500/1400;2000/1900 | ||||||
| Width of bed / hardness mm | mm | 400, Rc52 | 400, Rc52 | 400, Rc52 | ||||
| Section of turning tools | mm | 25x25 | 25x25 | 25x25 | ||||
| Spindle speed range | r/min | 10-1400(24) | 10-1400(24) | 10-1400(24) | ||||
| Spindle bore and nose | mm | 80 A28 | 80 A28 | 80 A28 | ||||
| Taper of spindle nose | mm | φ90(1:20) | φ90(1:20) | φ90(1:20) | ||||
| Range of longitudinal feed | Standard | mm/r | 0.11-1.6 | 0.11-1.6 | 0.11-1.6 | |||
| small feed | mm/r | 0.028-0.11 | 0.028-0.11 | 0.028-0.11 | ||||
| enlarge feed | mm/r | 1.76-6.4 | 1.76-6.4 | 1.76-6.4 | ||||
| Rang of cross feed | Standard | mm/r | 0.05-0.8 | 0.05-0.8 | 0.05-0.8 | |||
| small feed | mm/r | 0.014-0.05 | 0.014-0.05 | 0.014-0.05 | ||||
| enlarge feed | mm/r | 0.88-3.2 | 0.88-3.2 | 0.88-3.2 | ||||
| Travel of cross slide / top turret travel | mm | 320/140 | 320/140 | 420/140 | ||||
| Swiveling angle of compound slide | degree | ±90 | ±90 | ±90 | ||||
| Rapid travel carriage | m/min | 4 | 4 | 4 | ||||
| Rapid travel of cross slide | m/min | 2 | 2 | 2 | ||||

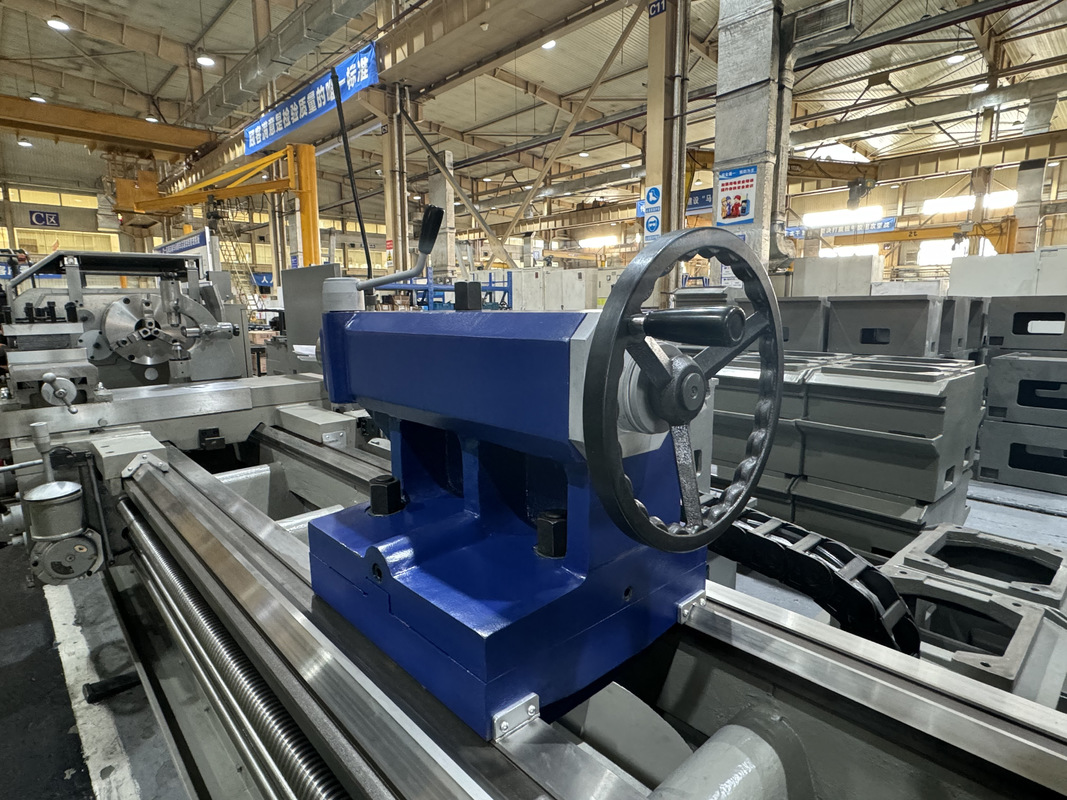

| Travel of tailstock spindle | mm | 150 | 150 | 150 | ||||
| Diameter of tailstock spindle | mm | 75 | 75 | 75 | ||||
| Taper of tailstock spindle | Morse 5# | Morse 5# | Morse 5# | |||||
| Metric thread(kinds) | mm | 1-192(44) | 1-192(44) | 1-192(44) | ||||
| Whitwhorth thread(kinds) | t.p.i | 1/2-24(28) | 1/2-24(28) | 1/2-24(28) | ||||
| Modular thread(kind) | mm | 0.25-48(39) | 0.25-48(39) | 0.25-48(39) | ||||
| Diameter Pitch(kinds) | D.P | 1/2-96(38) | 1/2-96(38) | 1/2-96(38) | ||||
| Main motor | kW | 7.5 | 7.5 | 7.5 | ||||
| New weight of machine | 1000mm | kg | 2070 | 2140 | 2260 | |||
| 1500mm | kg | 2220 | 2290 | 2437 | ||||
| 2000mm | kg | 2570 | 2640 | 2787 | ||||
| Overall dimensions(L×W×H) | 1000mm | mm | 2668*1000*1267 | 2668*1037*1312 | 2668*1130*1367 | |||
| 1500mm | mm | 3168*1000*1267 | 3168*1037*1312 | 3168*1130*1367 | ||||
| 2000mm | mm | 3668*1000*1267 | 3668*1037*1312 | 3668*1130*1367 | ||||

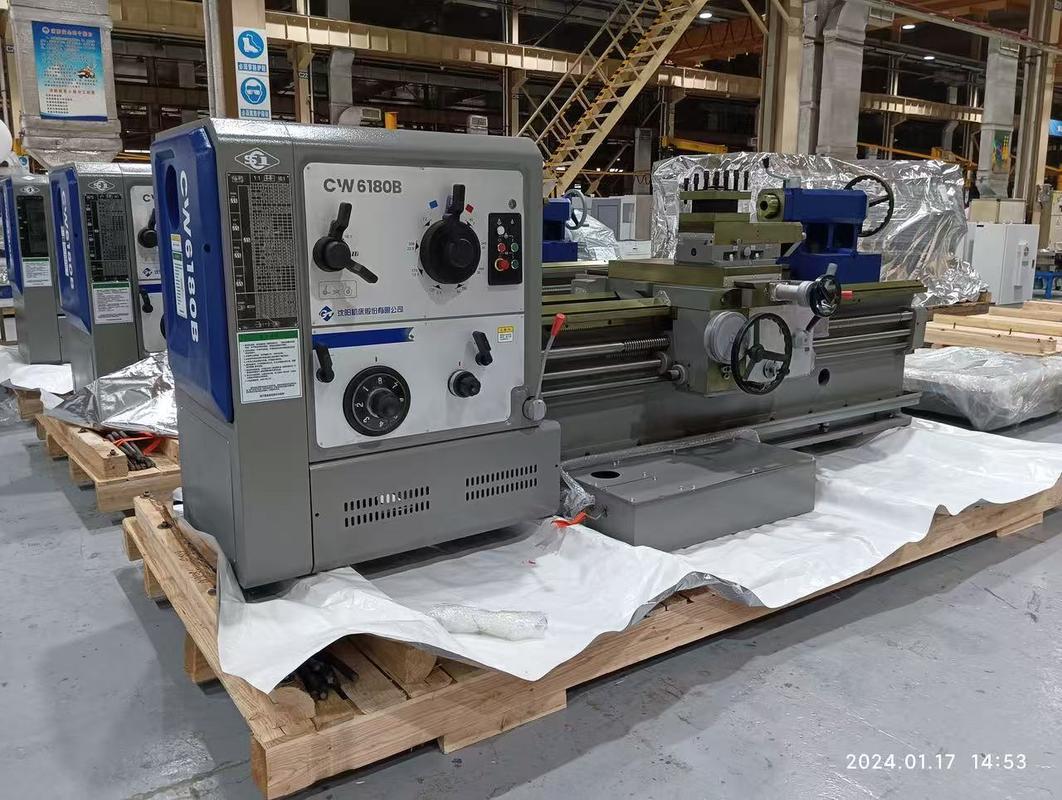

Pacakge & Transportation
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
6. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
