Place of Origin:
China
Brand Name:
smtcl
Certification:
CE ISO
Model Number:

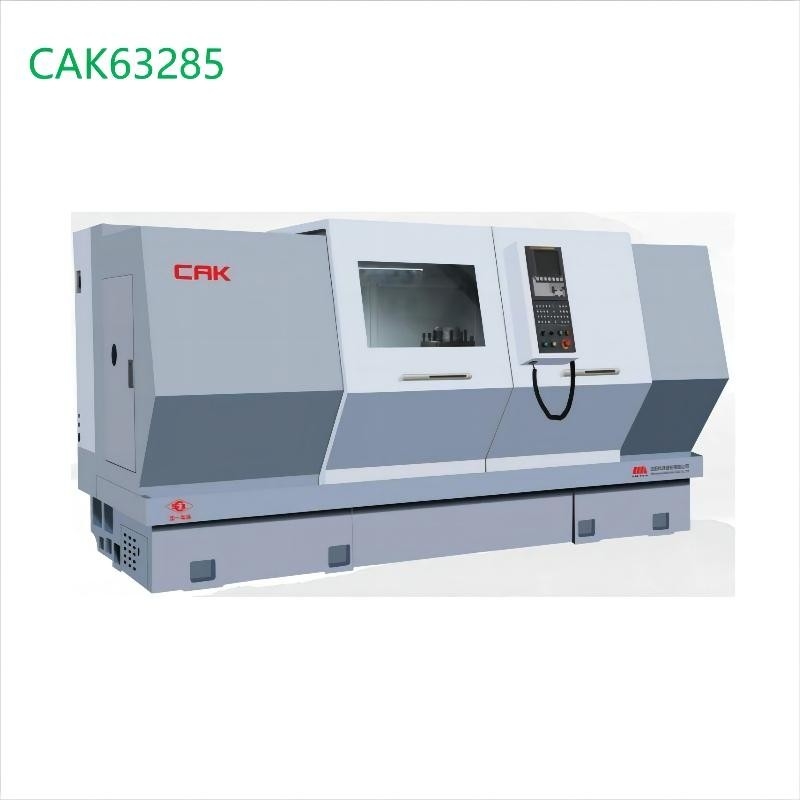

CAK63285
Video
Video
Video
1, the machine tool precision is high, the spindle adopts double ball bearing support, low noise, high precision, good stability.
2, can turn all kinds of rotary surface, such as cylindrical surface, conical surface, special shape surface, and can carry out grooving, car thread, boring, reaming processing,.
3, bed guide rail by audio quenching after fine grinding, high hardness, good rigidity.
4, ball screw adopts integral internal circulation screw, supported and pretightened with diagonal contact ball bearing. Guide rail, screw and so on adopt centralized automatic lubrication, with flexible movement, reduce thermal deformation, precision stability characteristics.

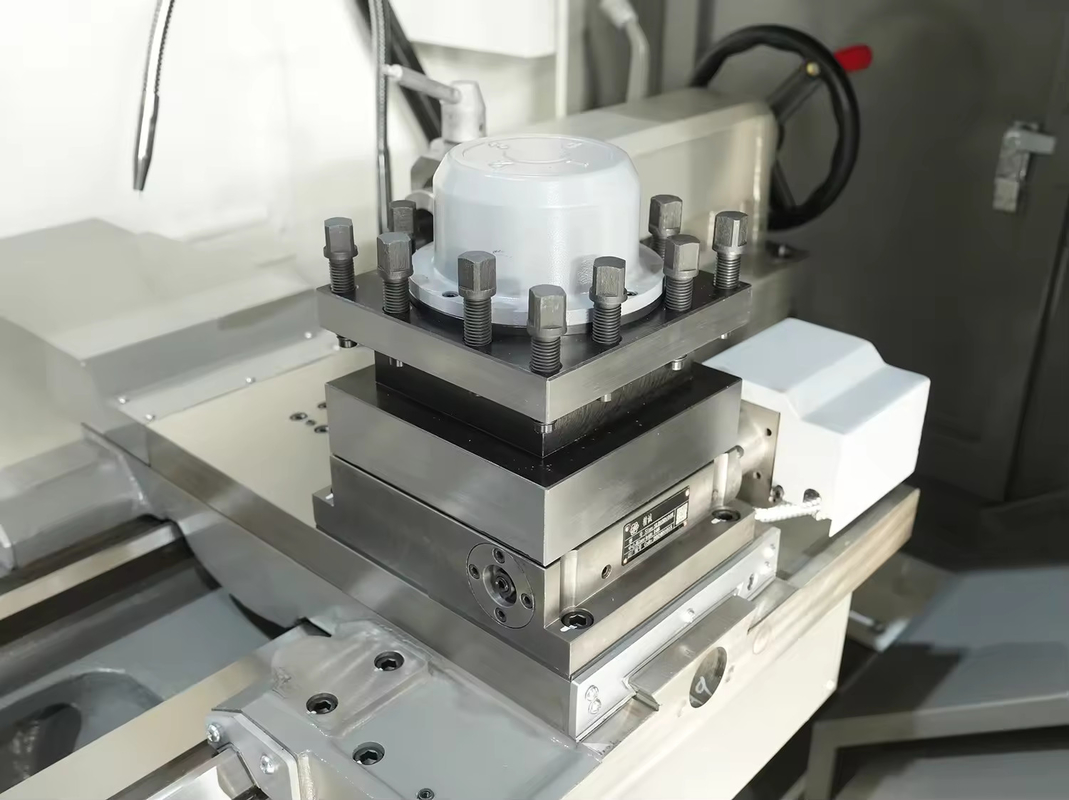

5, electric four-position tool rest adopts tooth plate positioning, high repeatable positioning accuracy.

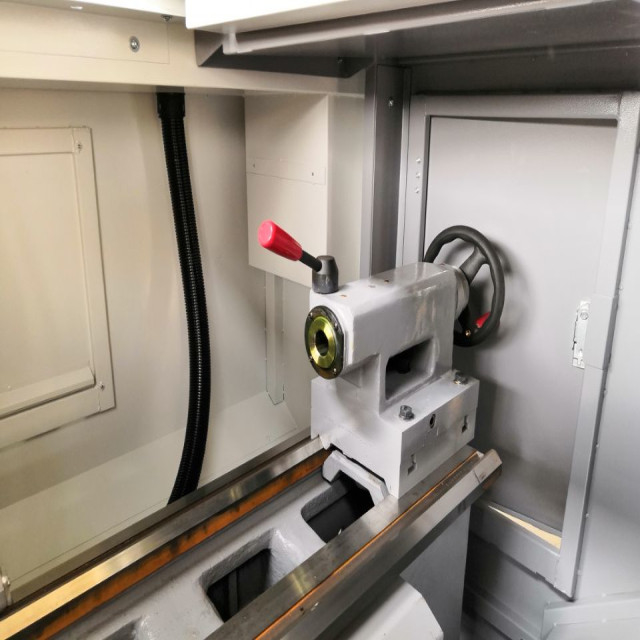

6, tail frame with CAM clamping device, work. The tailstock sleeve has a device for bit rotation, which avoids damage to the taper of the inner hole of the tailstock sleeve caused by the bit rotation caused by misoperation and protects the tailstock components.
Machine Parameters
| Item | Unit | CAK6385 | CAK63135 | CAK63285 | |
| Max workpiece length | mm | 1000 | 1500 | 3000 | |
| Max turning length | mm | 850 | 1350 | 2850 | |
| Maximum swing diameter on bed | mm | 630 | 630 | 630 | |
| Maximum turning diameter on slide | mm | 350 | 350 | 350 | |
| Max turning diameter | mm | 630 | 630 | 630 | |
| spindle passing bore diameter | mm | 104 | 104 | 104 | |
| spindle taper | A2-11 | A2-11 | A2-11 | ||
| spindle speed | Hydraulic four-gear | ||||
| Spindle speed range | r/min | 17-1000 | |||
| Chuck diameter | mm | 315 | 315 | 315 | |
| Max. power | kW | 11 | 15 | 15 | |
| X-axis fast moving speed | m/min | 6 | |||
| Z-axis fast moving speed | m/min | 10 | |||
| Tailstock sleeve diameter | mm | 100 | |||
| Tailstock sleeve stroke | mm | 250 | |||
| Tailstock spindle taper taper | Mohs | 5# | |||
| Standard tool holder form | Vertical 4 station | ||||
| External knife | mm | 32x32 | |||
| Precision | IT6~IT7 | ||||
| Machine weight | Total weight | kg | 5200 | 5550 | 6950 |
| Machine tool appearance | Length × width × height | mm | 3410x2010x1780 | 3860x2010x1780 | 5360x2010x1780 |
FAQ:
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company? A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3:What is your trade terms? A : FOB, CFR and CIF all acceptable.
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
5 What's the MOQ?
A: 1 set
