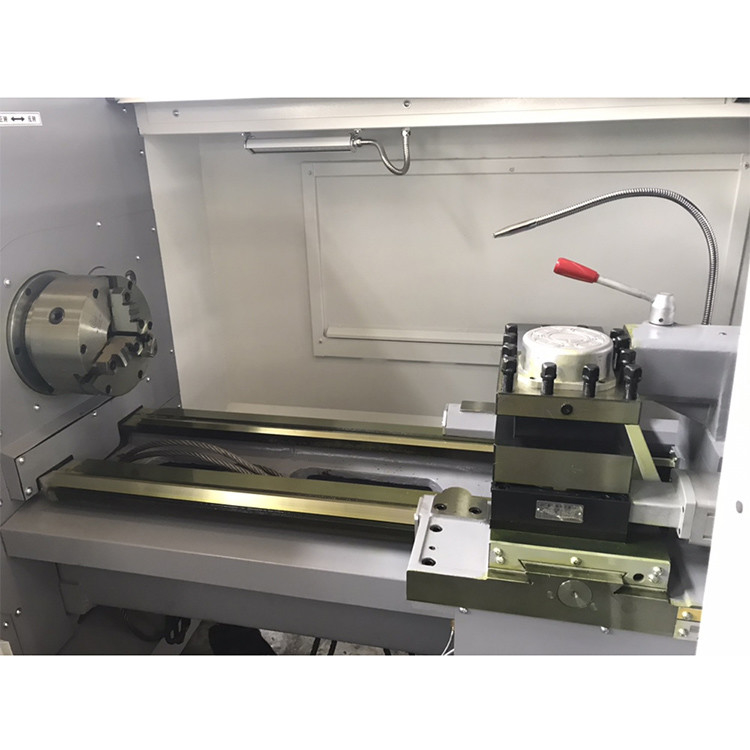

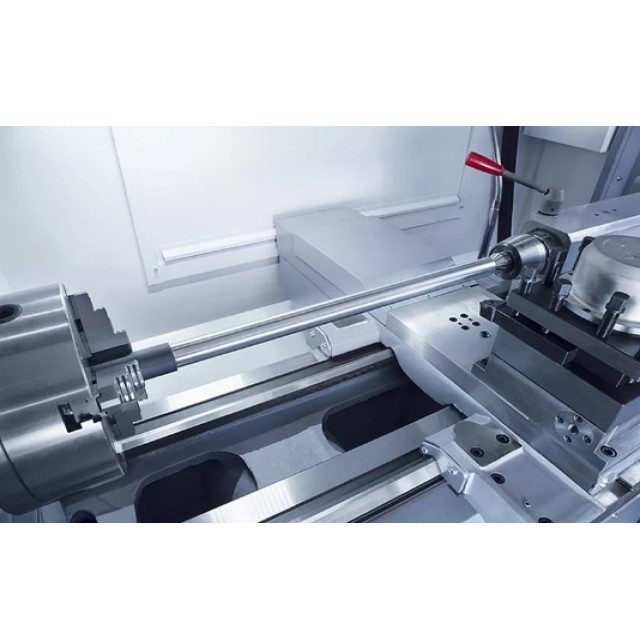

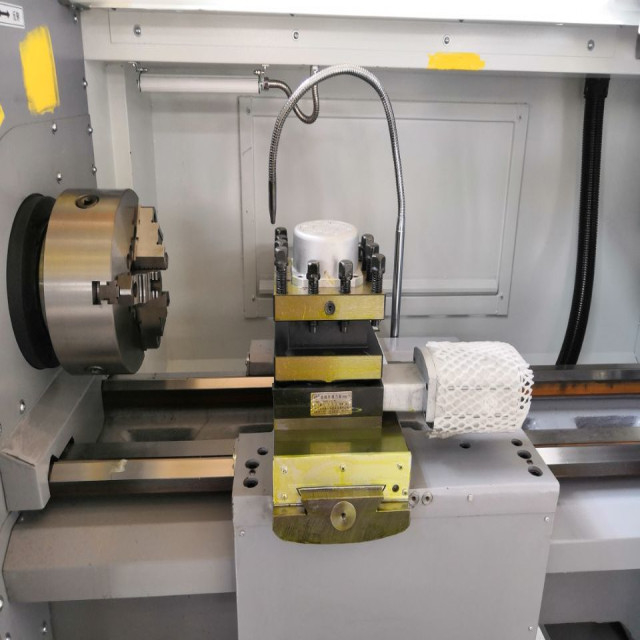

CNC Turning Lathe Machine CAK6385 Servo Motor 4 Stations Turret Metal CNC Lathe

CNC Turning Lathe Machine CAK6385 Servo Motor 4 Stations Turret Metal CNC Lathe

4 Stations CNC Turning Lathe Machine

ISO CNC Turning Lathe Machine

Servo Motor CNC Metal Lathe

Place of Origin:

China

Certification:

CE ISO

Model Number:

CAK6385

Contact Us
Request A Quote
CNC Turning Lathe Machine CAK6385 Servo Motor 4 Stations Turret Metal CNC Lathe
CNC Turning Lathe Machine CAK6385 Servo Motor 4 Stations Turret Metal CNC Lathe CNC Turning Lathe Machine CAK6385 Servo Motor 4 Stations Turret Metal CNC Lathe CNC Turning Lathe Machine CAK6385 Servo Motor 4 Stations Turret Metal CNC Lathe CNC Turning Lathe Machine CAK6385 Servo Motor 4 Stations Turret Metal CNC Lathe CNC Turning Lathe Machine CAK6385 Servo Motor 4 Stations Turret Metal CNC Lathe CNC Turning Lathe Machine CAK6385 Servo Motor 4 Stations Turret Metal CNC Lathe
Product Details
Product Name:
Servo Motor CAK6385 China Cnc Lathe Machine
Max. Length Of Workpiece (mm):
1000
Max. Turned Length (mm):
850
Max. Swing Diameter (mm):
630
Power (kW):
11
Spindle Bore:
104mm
Chuck Diameter:
315mm
Spindle Speed Ranges:
17-1000rpm
Spindle Nose:
A2-11
Tailstock Sleeve Dia:
100mm
Tailstock Sleeve Travel:
250mm
Turret Type:
4-station Vertical Electric Tool Post
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Package suitable for long distance sea freight
Delivery Time
30-40days
Supply Ability
1000 Sets per Year
RELATED PRODUCTS
Good price SMTCL SYMG High Rigidity High Speed CNC Lathe HTC125 Large Horizontal Flat Bed CNC Lathe online Video

SMTCL SYMG High Rigidity High Speed CNC Lathe HTC125 Large Horizontal Flat Bed CNC Lathe

Get Best Price
Good price SMTCL CNC Lathe CAK6185 Flat Bed CNC Lathe Machine Horizontal Metal Large CNC Lathe online Video

SMTCL CNC Lathe CAK6185 Flat Bed CNC Lathe Machine Horizontal Metal Large CNC Lathe

Get Best Price
Good price High Precision Flat Bed CNC Lathe Machine CAK5085 Horizontal Metal Cutting Lathe online Video

High Precision Flat Bed CNC Lathe Machine CAK5085 Horizontal Metal Cutting Lathe

Get Best Price
Good price SMTCL Precision CNC Lathe CAK50186 CNC Lathe Machine Max Cutting Length 1860mm Flat Bed CNC Lathe online Video

SMTCL Precision CNC Lathe CAK50186 CNC Lathe Machine Max Cutting Length 1860mm Flat Bed CNC Lathe

Get Best Price
Contact Us
+8613916455787
sales@huidijd.com
86-021-61195255
Contact Now
Product Description

Servo Motor CAK6385 Cnc Lathe Machine Price Cnc Turning Tool Machine Lathe Metal Manufacturer



Product Introduction



 CAK63 SERIES

  • The span of the guide rail is 324 mm, the depth of quenching layer is 2-3 mm, and the hardness of the guide rail is 52HRC.
  •  X-axis  fast moving is 6m/min, Z-axis fast moving is 12m/min.
  • First patented hydraulic gear-shifting bed head structure is convenient to operatewith high precision and reliability
  • The weight of  trapezoidal integrated heavy bed increase 30%, but also the U-shaped bar lift the rigidity.
  • External main servo motote save space,which is easy maintenance
  • Full-functional two-axis transmission structure can improve processing accuracy
  • T-shaped trough reinforced structure of tailstock increase stability
  • Large waterproof tank, the waterproof structure from plugging to sparse, increase the waterproof performance of the whole machine
Machine Parameters

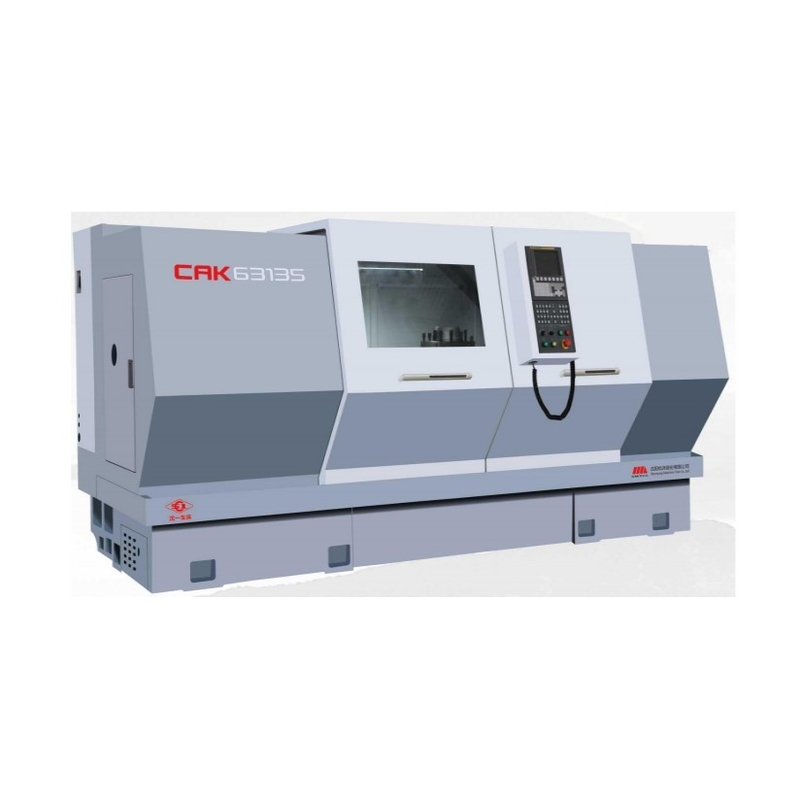

Item Unit CAK6385 CAK63135 CAK63285
Max workpiece length mm 1000 1500 3000
Max turning length mm 850 1350 2850
Maximum swing diameter on bed mm 630 630 630
Maximum turning diameter on slide mm 350 350 350
Max turning diameter mm 630 630 630
spindle passing bore diameter mm 104 104 104
spindle taper   A2-11 A2-11 A2-11
spindle speed   Hydraulic four-gear
Spindle speed range r/min 17-1000
Chuck diameter mm 315 315 315
Max. power kW 11 15 15
X-axis fast moving speed m/min 6
Z-axis fast moving speed m/min 10
Tailstock sleeve diameter mm 100
Tailstock sleeve stroke mm 250
Tailstock spindle taper taper Mohs 5#
Standard tool holder form   Vertical 4 station
External knife mm 32x32
Precision   IT6~IT7
Machine weight Total weight kg 5200 5550 6950
Machine tool appearance Length × width × height mm 3410x2010x1780 3860x2010x1780 5360x2010x1780



Product advantages

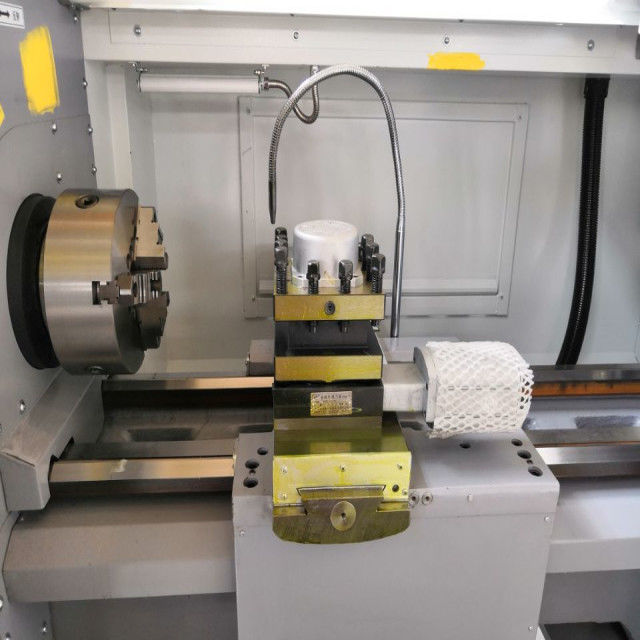

 CNC Turning Lathe Machine CAK6385 Servo Motor 4 Stations Turret Metal CNC Lathe 1
